STD

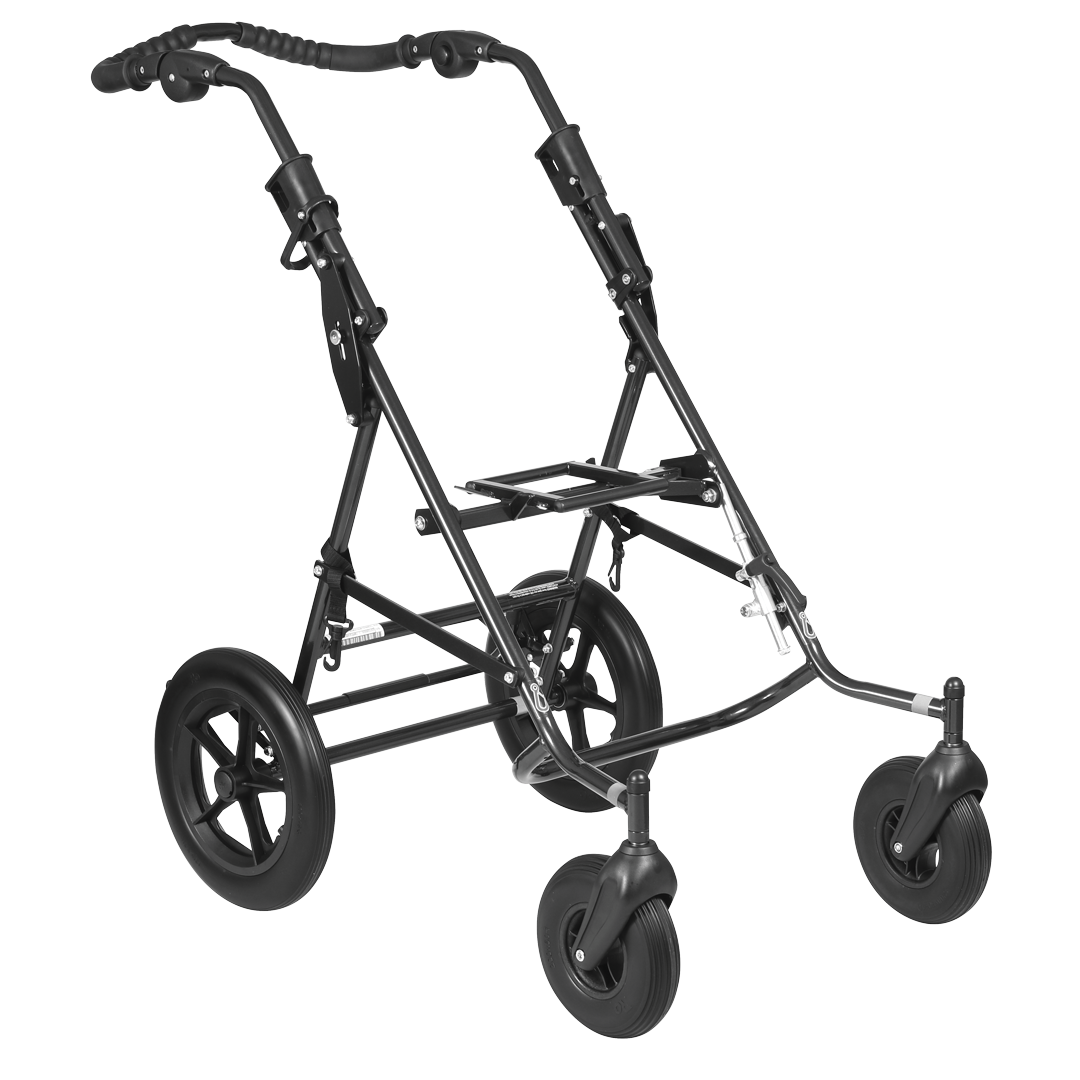

TOM 4 CSI
CSI interface (Chassis and Seat Interface)
3 sizes STANDARD, MAXI, SuperMAXI
Lightweight steel frame
Sizes
MAXI
SM42
STD
MAXI
SM42
| STD | MAXI | SM42 | |
|---|---|---|---|
| Width-clearance (mm) | 400 | 440 | 480 |
| Interface to floor (mm) | 490 | 500 | 500 |
| Interface angle | +/-21° | +/-21 | +/-21 |
| Total length (mm) | 845 | 845 | 845 |
| Total width (mm) | 580 | 620 | 670 |
| Total height (mm) | 1000 | 1070 | 1070 |
| Brake | foot oper. | foot oper. | foot oper. |
| Weight (kg) | 11,5 | 11,5 | 13,5 |
| Maximum load (kg) | 45,0 | 55,0 | 80,0 |
| Folded stroller lenght (mm) | 900 | 900 | 910 |
| Folded stroller width (mm) | 580 | 620 | 670 |
| Folded stroller height (mm) | 500 | 500 | 520 |
Width-clearance (mm)
STD
400
MAXI
440
SM42
480
Interface to floor (mm)
STD
490
MAXI
500
SM42
500
Interface angle
STD
+/-21°
MAXI
+/-21
SM42
+/-21
Total length (mm)
STD
845
MAXI
845
SM42
845
Total width (mm)
STD
580
MAXI
620
SM42
670
Total height (mm)
STD
1000
MAXI
1070
SM42
1070
Brake
STD
foot oper.
MAXI
foot oper.
SM42
foot oper.
Weight (kg)
STD
11,5
MAXI
11,5
SM42
13,5
Maximum load (kg)
STD
45,0
MAXI
55,0
SM42
80,0
Folded stroller lenght (mm)
STD
900
MAXI
900
SM42
910
Folded stroller width (mm)
STD
580
MAXI
620
SM42
670
Folded stroller height (mm)
STD
500
MAXI
500
SM42
520
