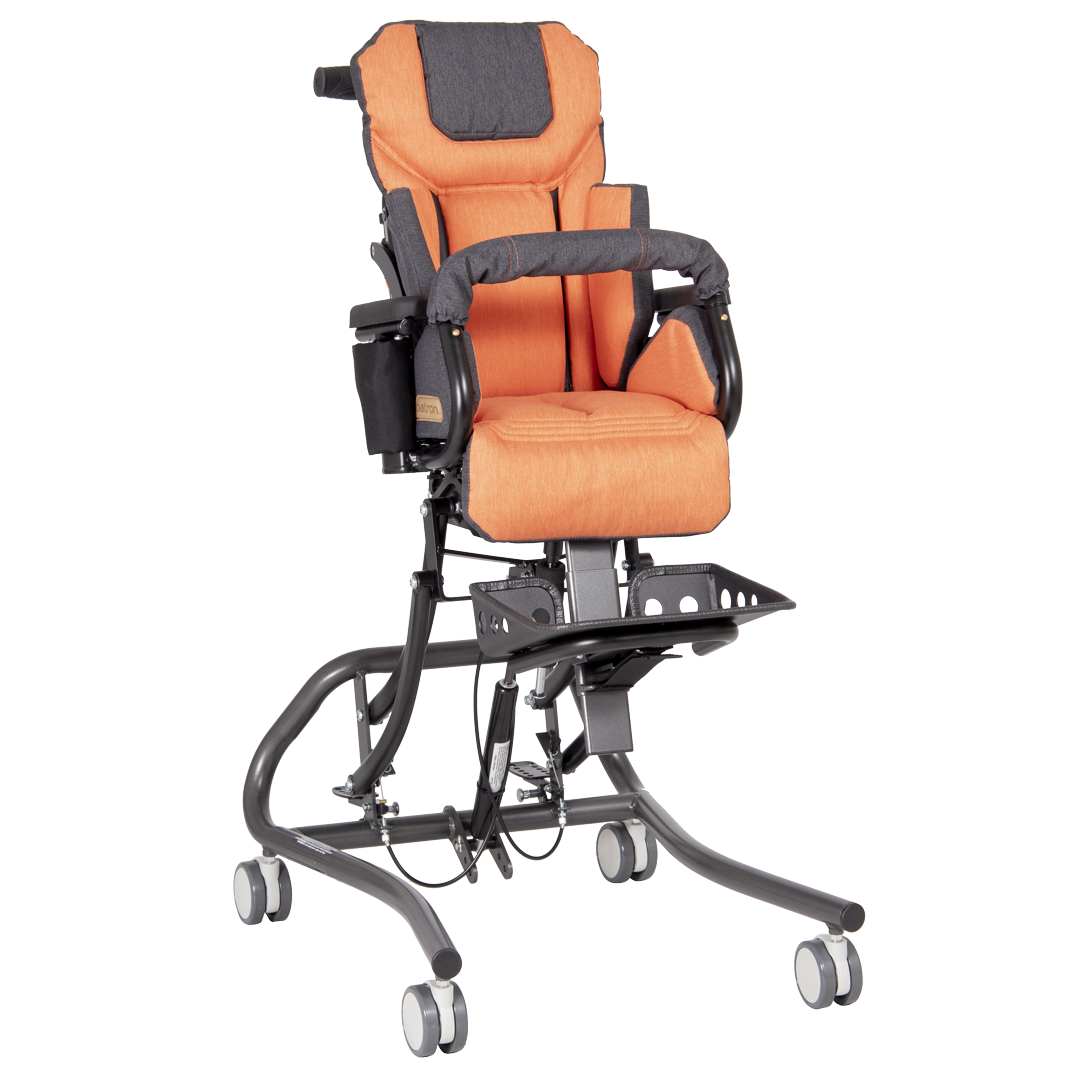

MINI
FROGGO Comfort

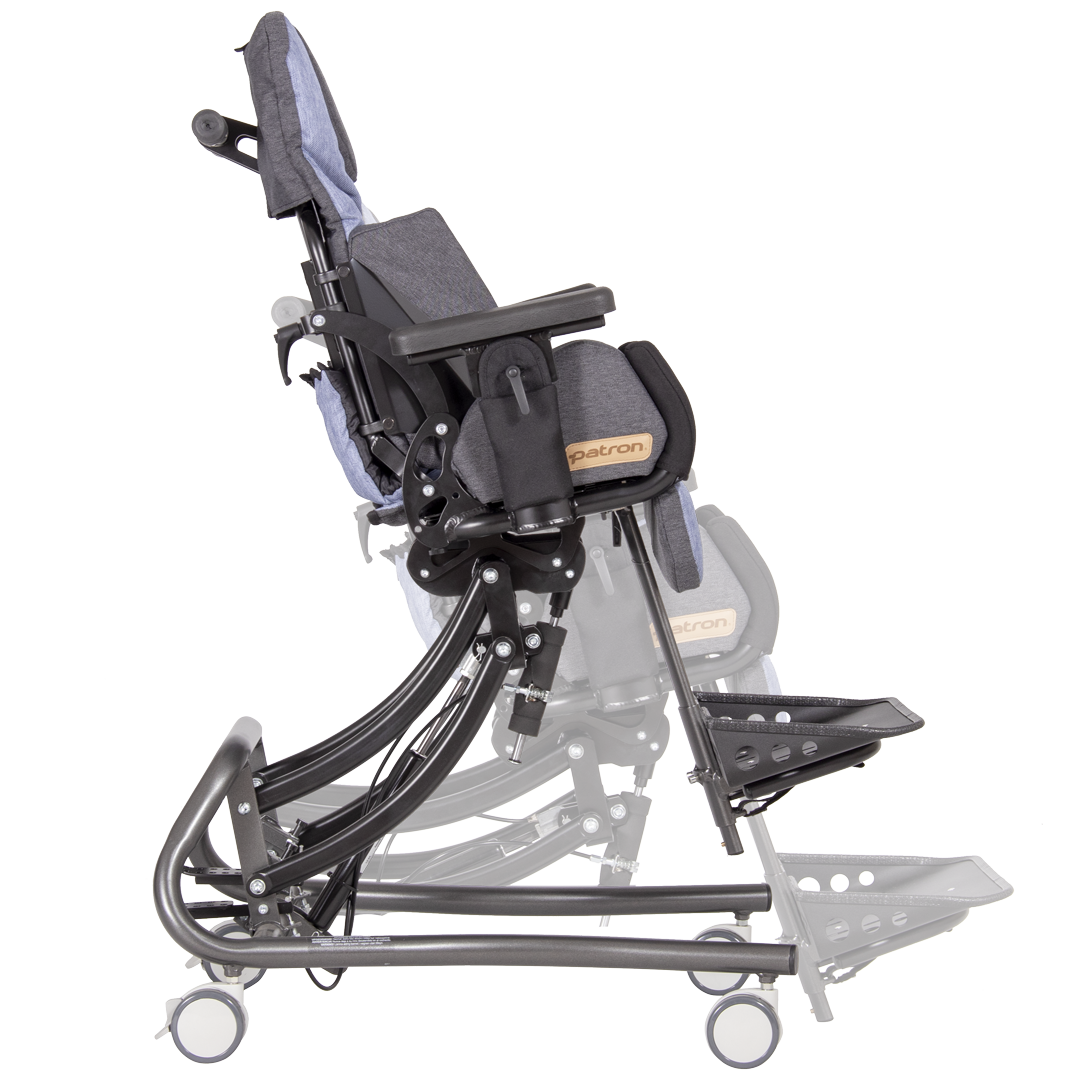

gas-spring fully adjustable high-low base
MONOSLIDE seat design
Highly inovative
3+ sizes
Sizes

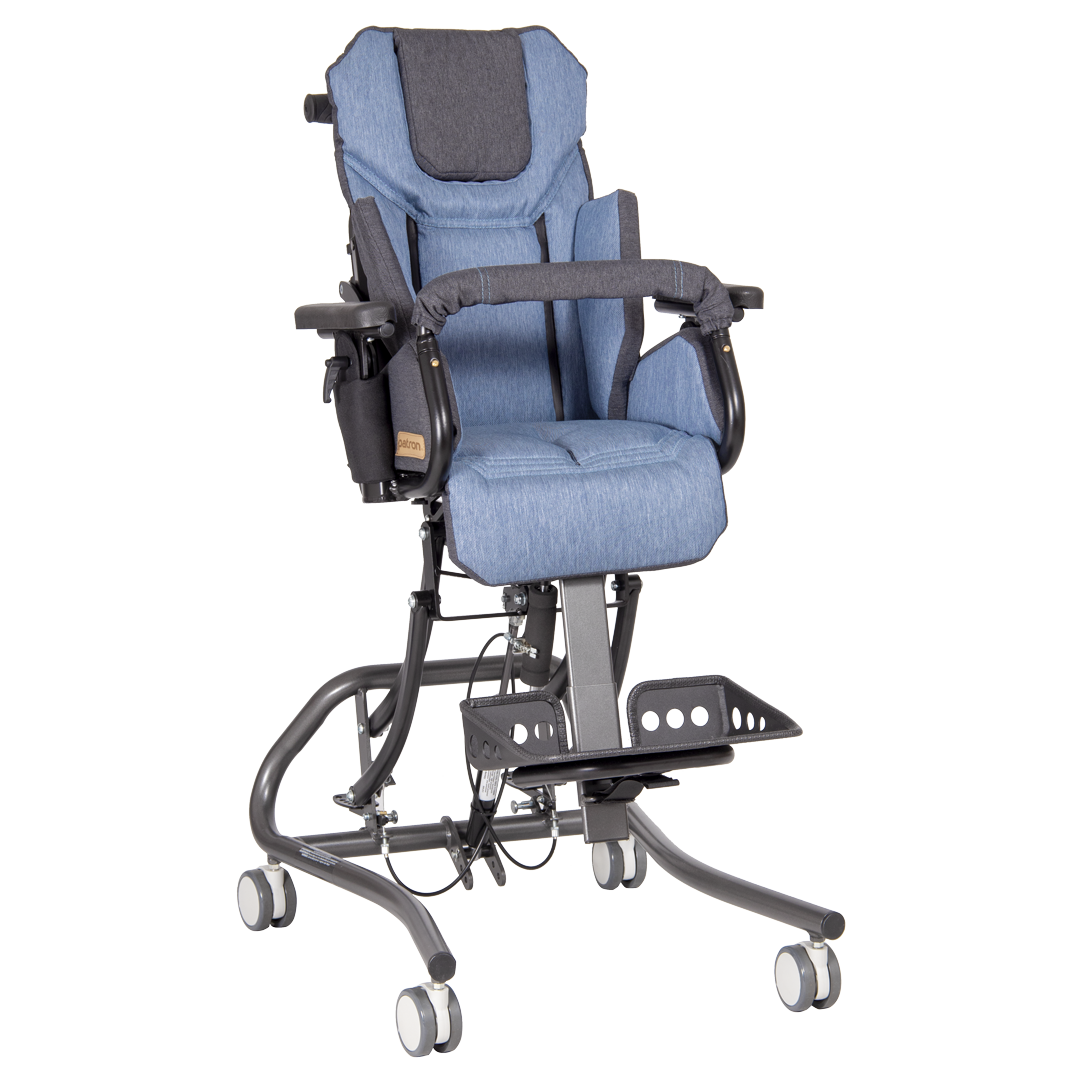

STD

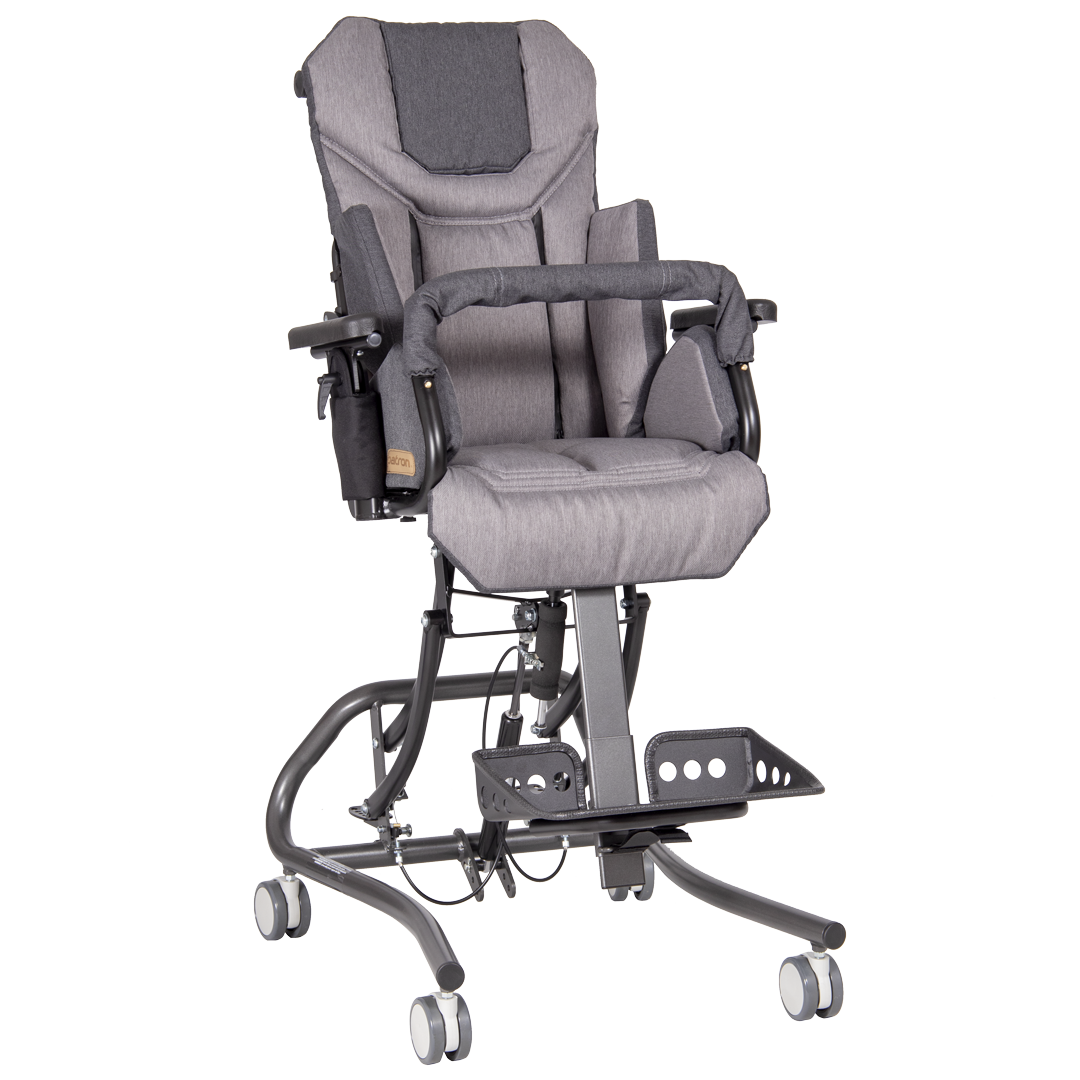

MAXI
MINI
STD
MAXI
Patterns of covers
R54
slate grey
R55
denim blue
R56
peas green
R57
antique pink
R54
slate grey
R55
denim blue
R56
peas green
R57
antique pink
| MINI | STD | MAXI | |
|---|---|---|---|
| Backrest height (mm) | 450-570 | 510-680 | 550-770 |
| Seat depth (mm) | (185) 200-270 | 230-330 | 290-400 |
| Seat width (mm) | 230-300 | 250-340 | 270-380 |

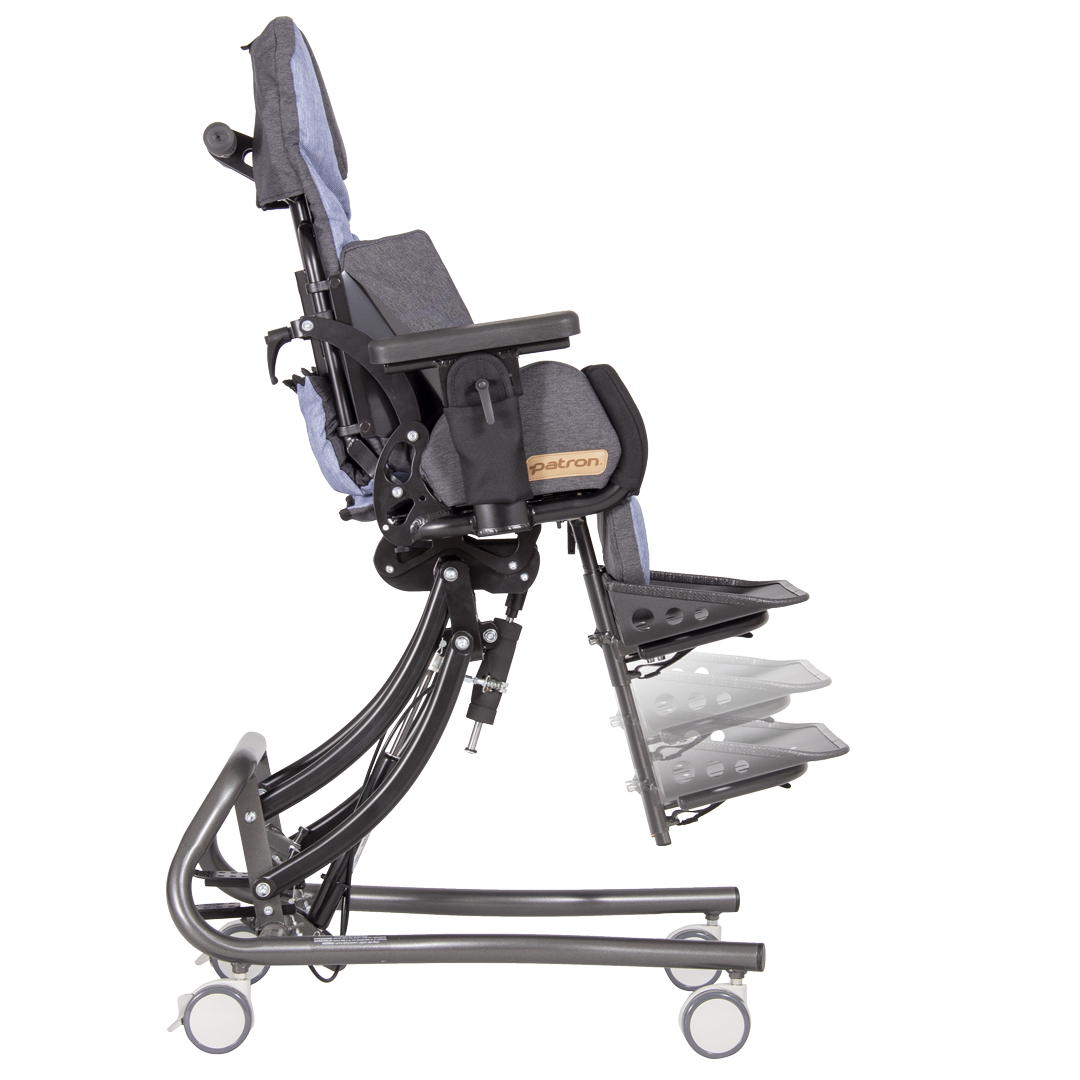

| Seat to footrest (mm) | 120-280 | 120-360 | 120-390 |

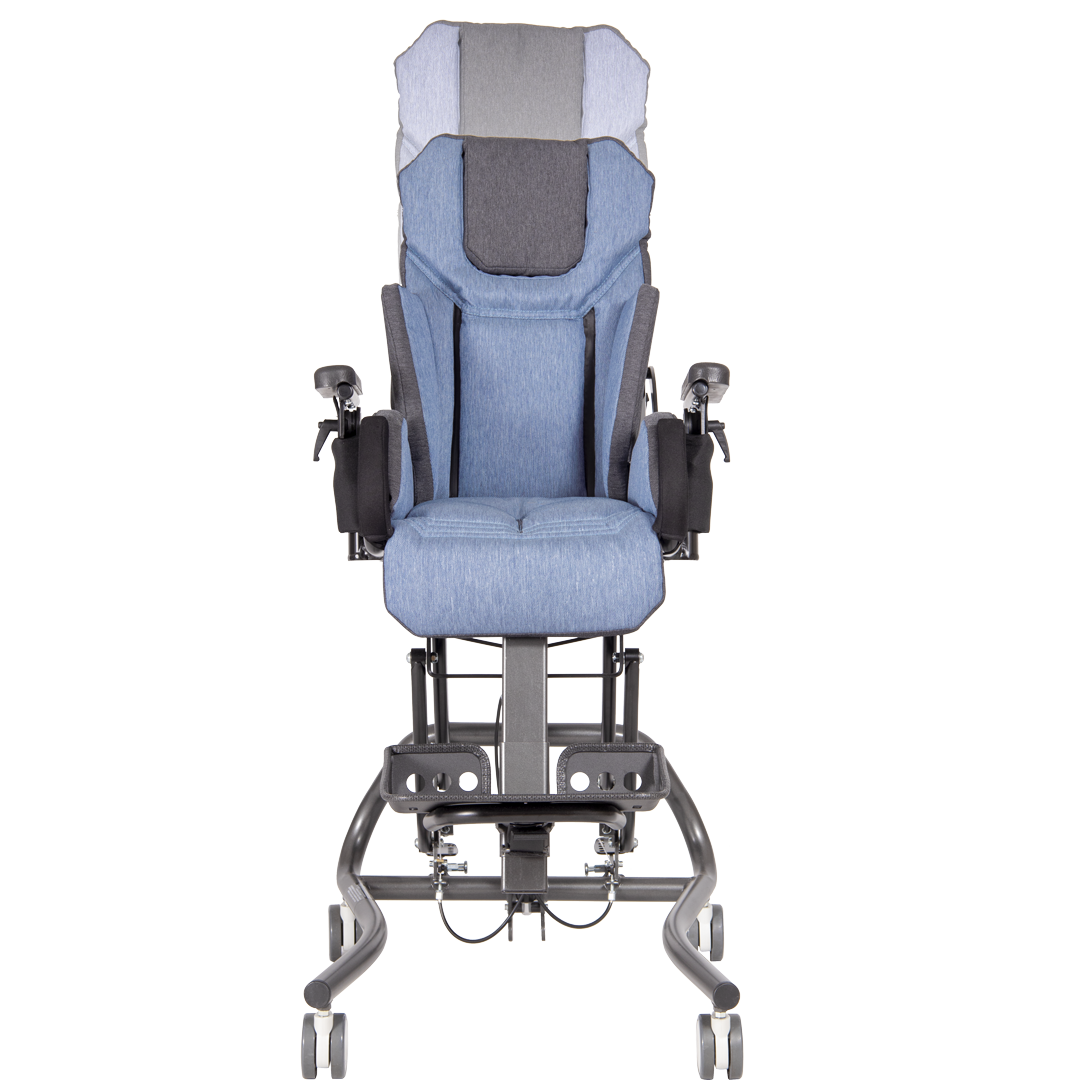

| Seat to floor (mm) | 302-630 | 320-630 | 302-630 |
| Armrest height (mm) | 160-210 | 200-270 | 200-270 |
| Armrest angle | +/- 15° | +/- 15° | +/- 15° |

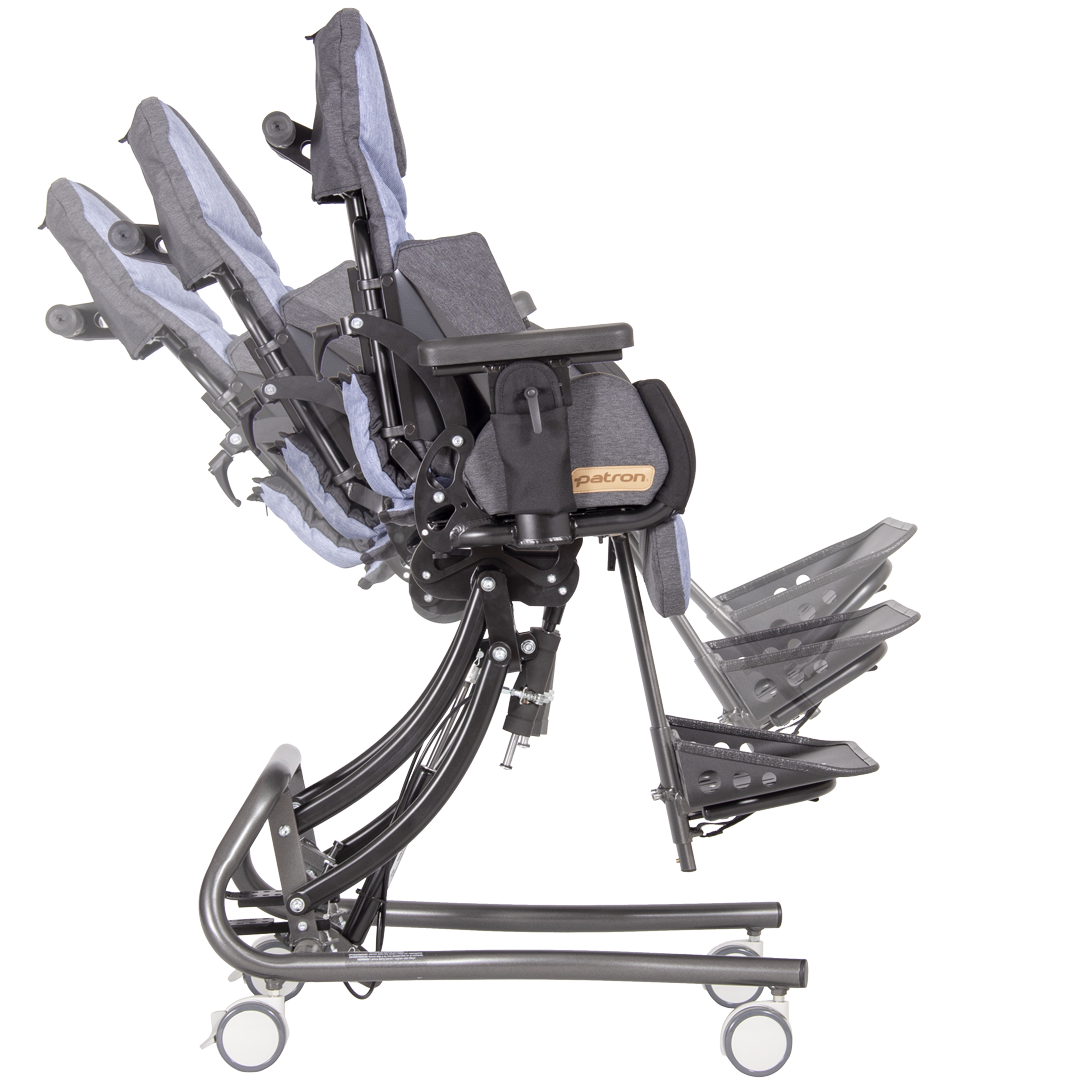

| Backrest angle | 90°- 180° | 90°- 180° | 90°- 180° |
| Seat angle | +42° -3° | +40° -5° | +41° -4° |
| Footplate angle | -9° / +14° | -9° / +14° | -9° / +14° |
| Total lenght (mm) | 800 | 800 | 800 |
| Total width (mm) | 500 | 500 | 540 |
| Total height (mm) | 1030 | 1120 | 1120 |
| Push handle height (mm) | adjustable | adjustable | adjustable |
| Weight (kg) | 16,2 | 16,9 | 18,0 |
| Maximum load (kg) | 40,0 | 40,0 | 50,0 |
Backrest height (mm)
MINI
450-570
STD
510-680
MAXI
550-770

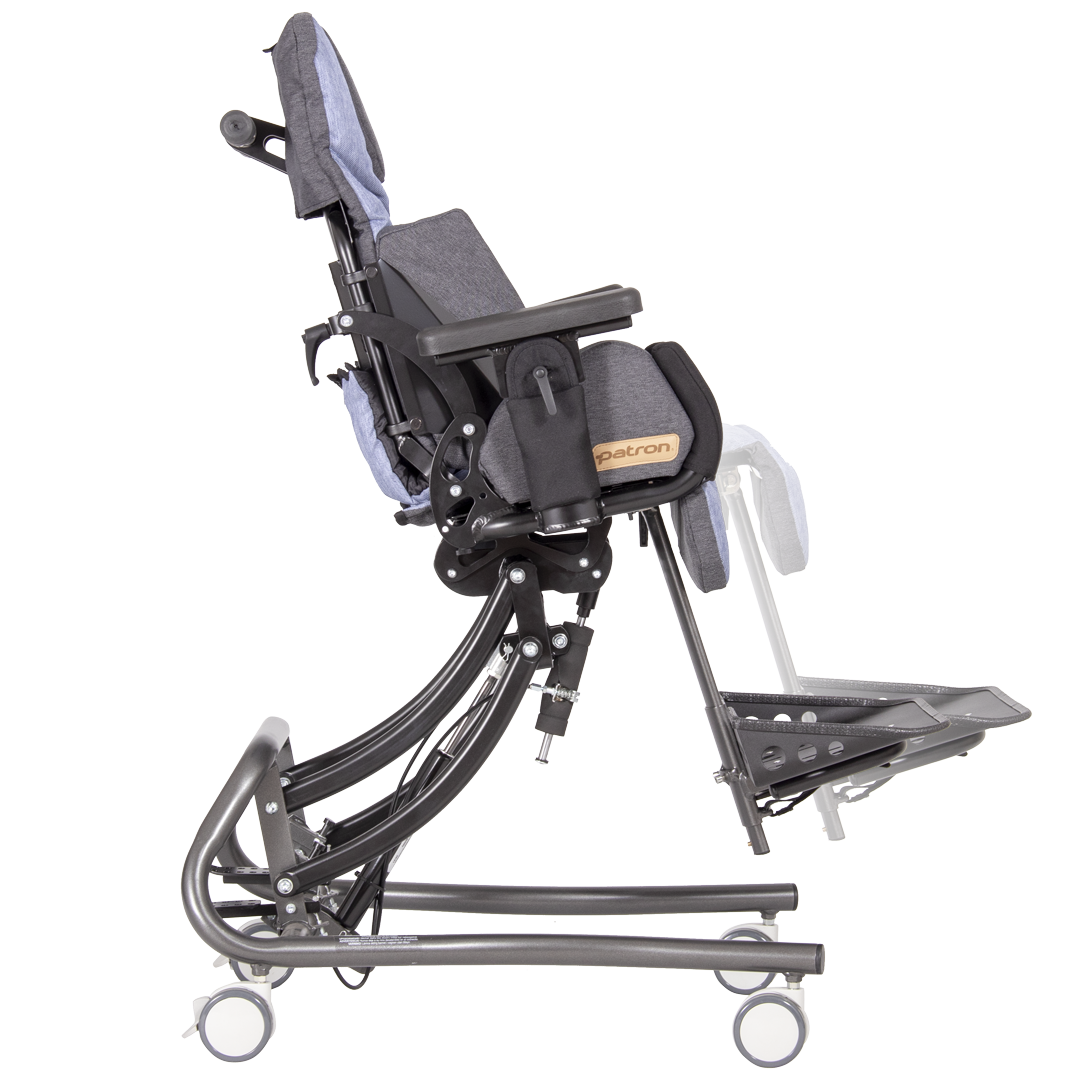

Seat depth (mm)
MINI
(185) 200-270
STD
230-330
MAXI
290-400
Seat width (mm)
MINI
230-300
STD
250-340
MAXI
270-380

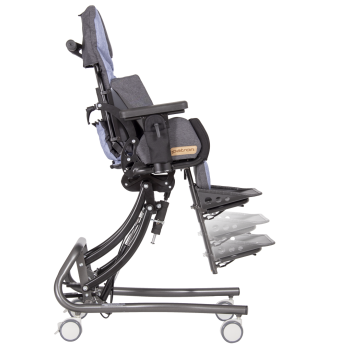

Seat to footrest (mm)
MINI
120-280
STD
120-360
MAXI
120-390
Seat to floor (mm)
MINI
302-630
STD
320-630
MAXI
302-630
Armrest height (mm)
MINI
160-210
STD
200-270
MAXI
200-270
Armrest angle
MINI
+/- 15°
STD
+/- 15°
MAXI
+/- 15°
Backrest angle
MINI
90°- 180°
STD
90°- 180°
MAXI
90°- 180°
Seat angle
MINI
+42° -3°
STD
+40° -5°
MAXI
+41° -4°
Footplate angle
MINI
-9° / +14°
STD
-9° / +14°
MAXI
-9° / +14°
Total lenght (mm)
MINI
800
STD
800
MAXI
800
Total width (mm)
MINI
500
STD
500
MAXI
540
Total height (mm)
MINI
1030
STD
1120
MAXI
1120
Push handle height (mm)
MINI
adjustable
STD
adjustable
MAXI
adjustable
Weight (kg)
MINI
16,2
STD
16,9
MAXI
18,0
Maximum load (kg)
MINI
40,0
STD
40,0
MAXI
50,0
