CORZO Xcountry
advanced rehab buggy
can grow with the child
high load capacity 75 kg
seat base tension adjustment

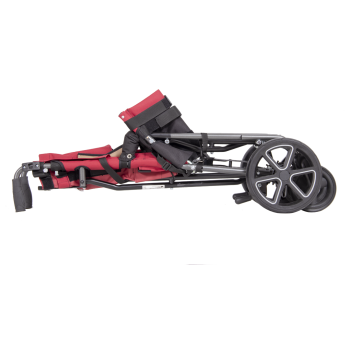

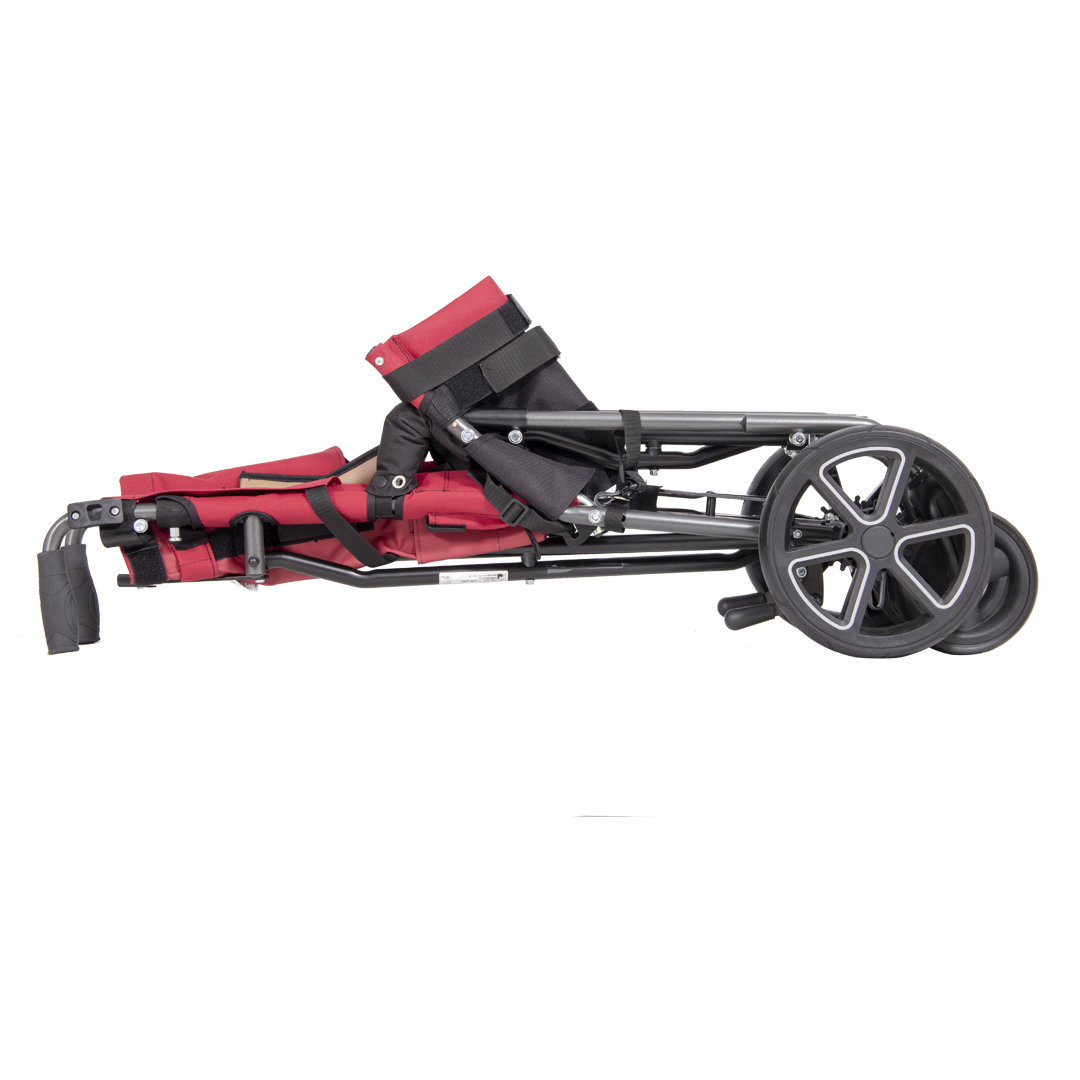

Lightweight&Compact folding

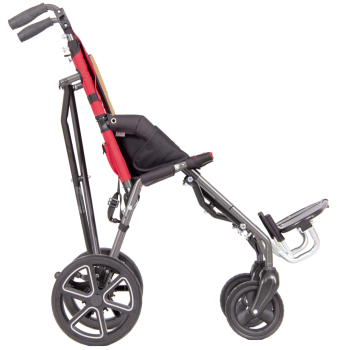

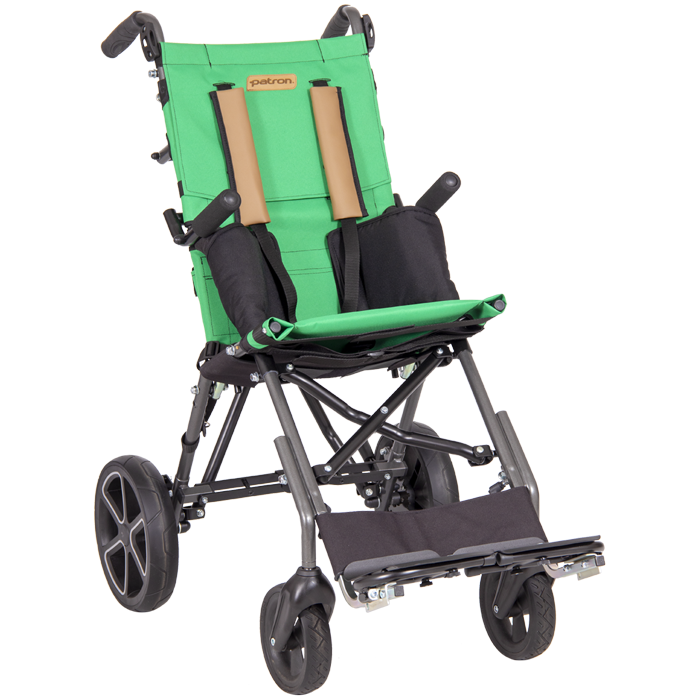

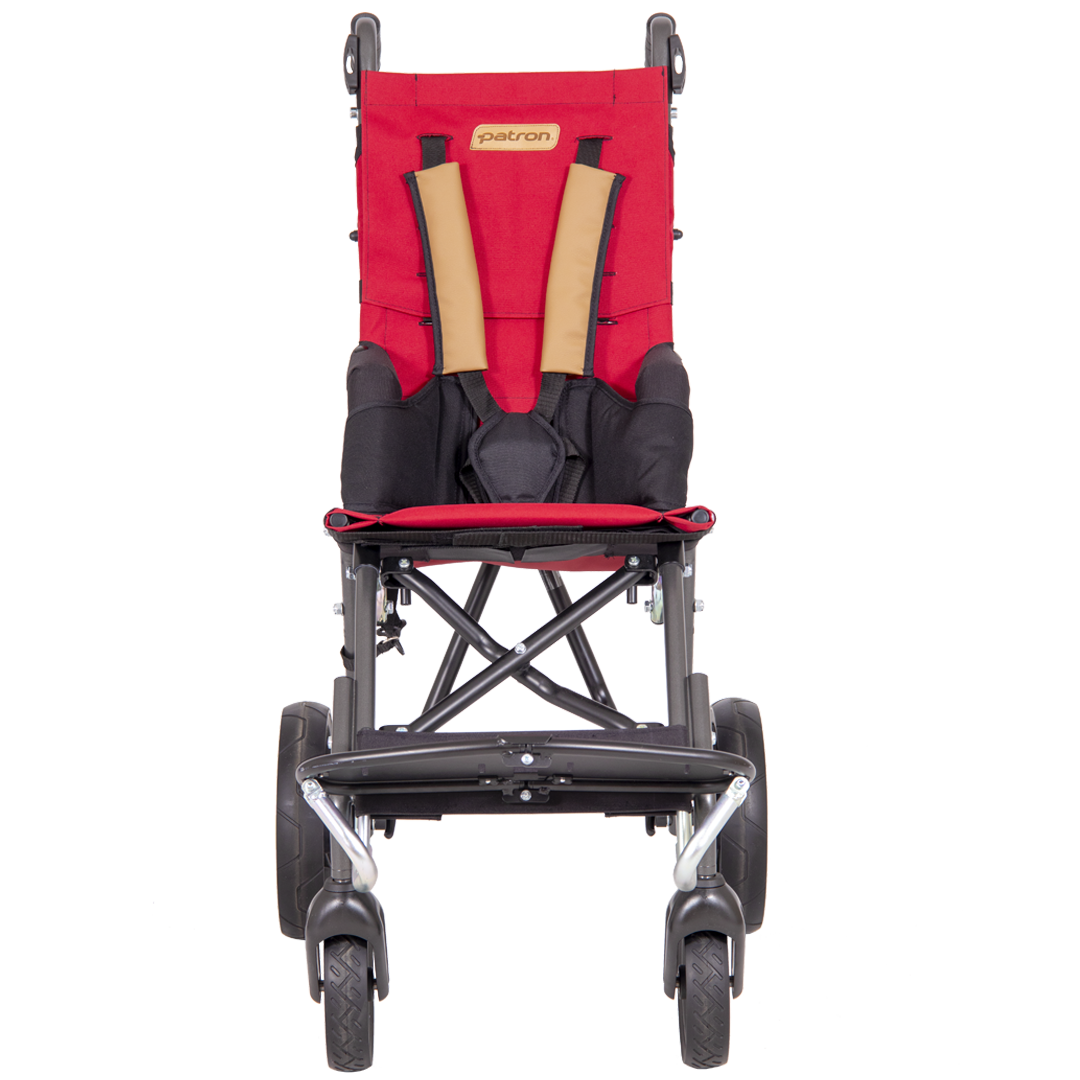

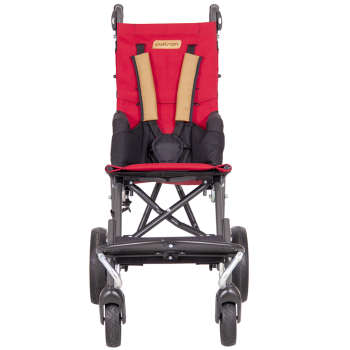

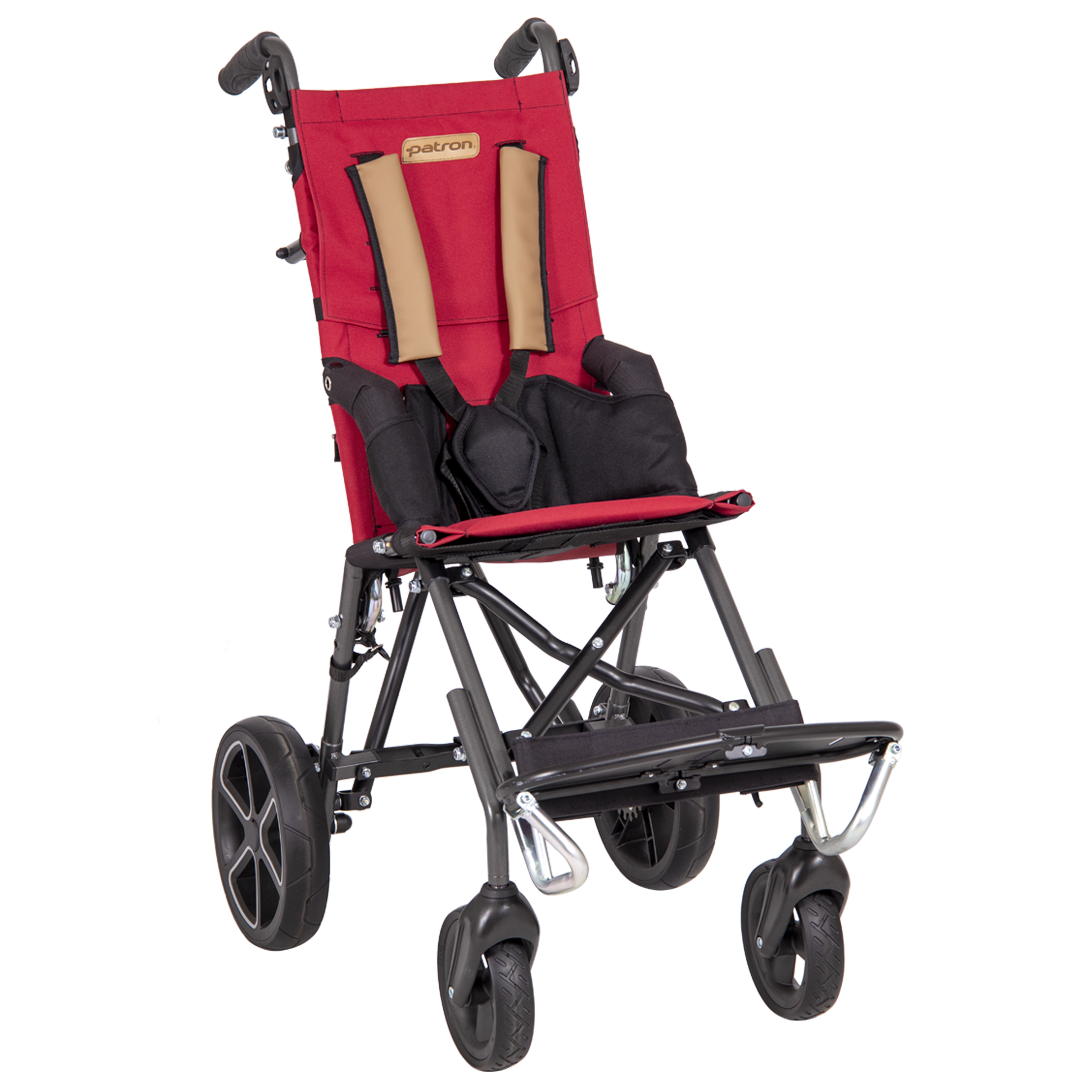

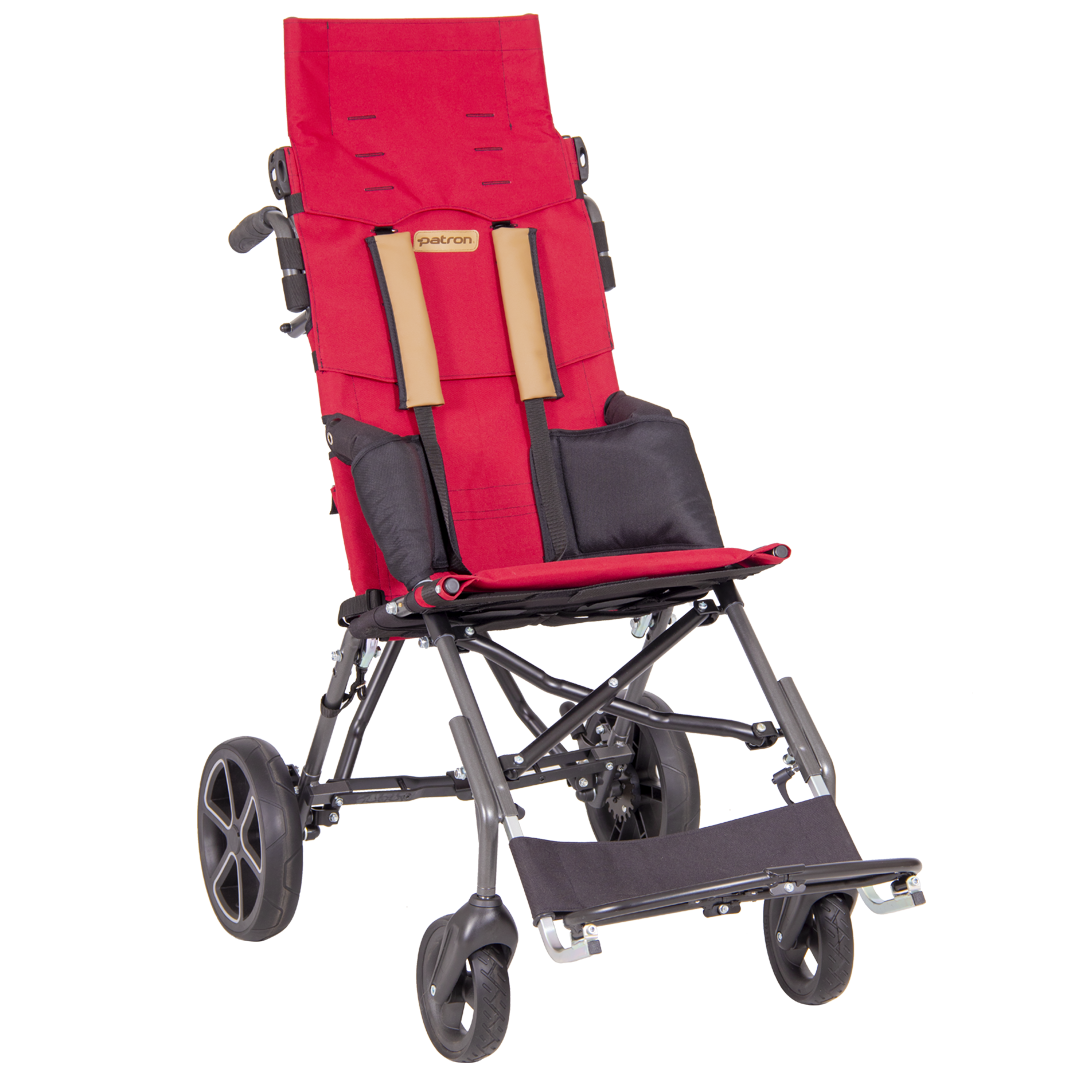

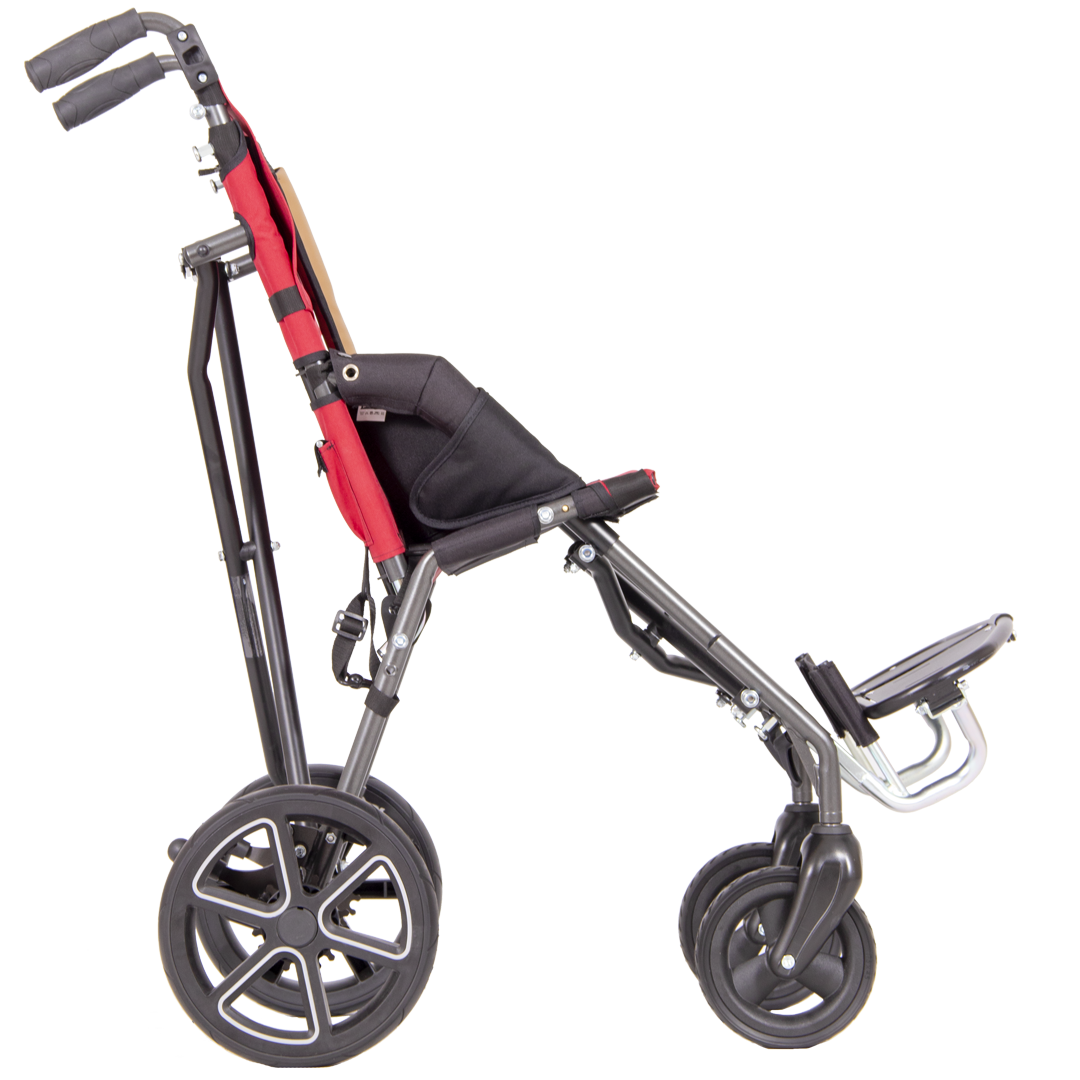

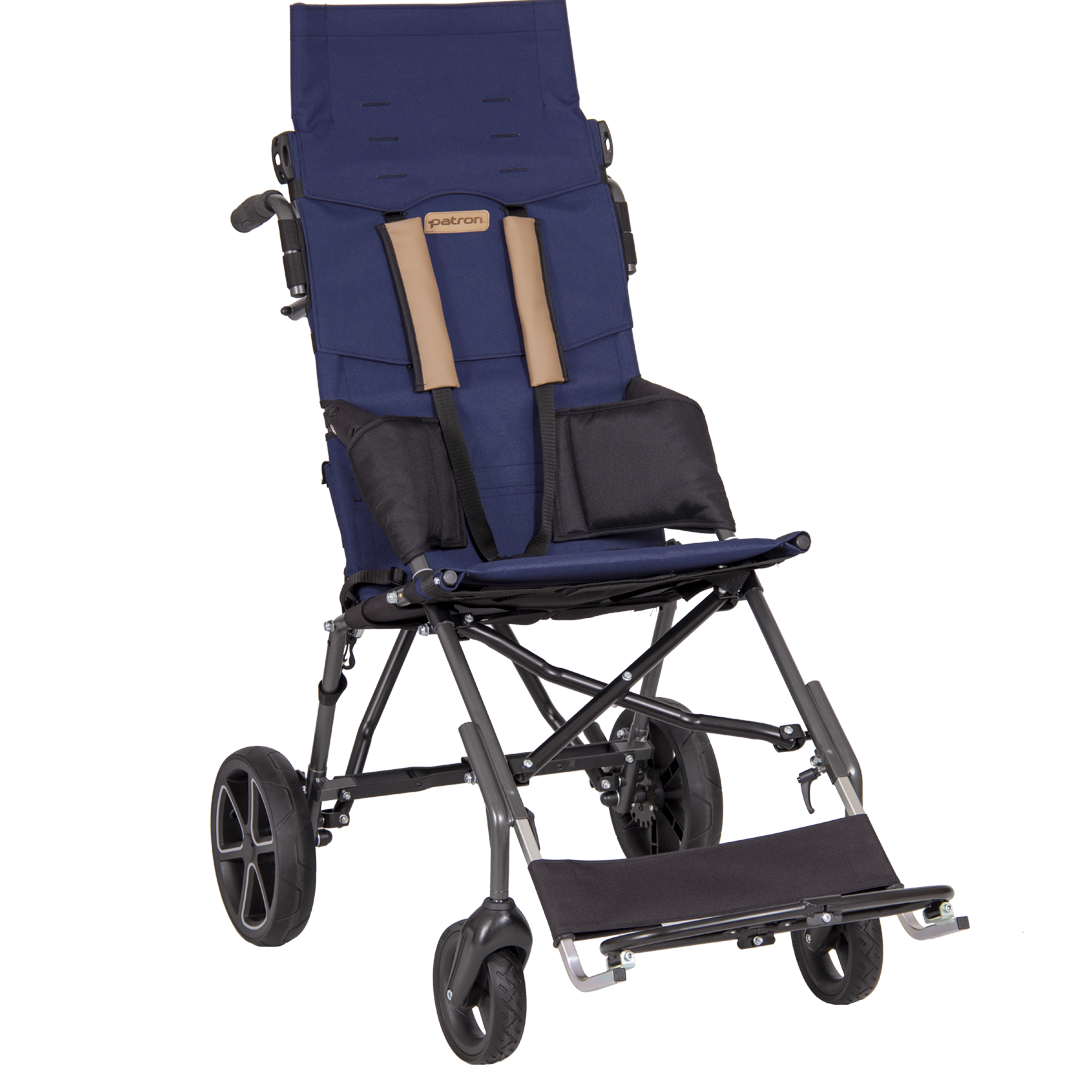

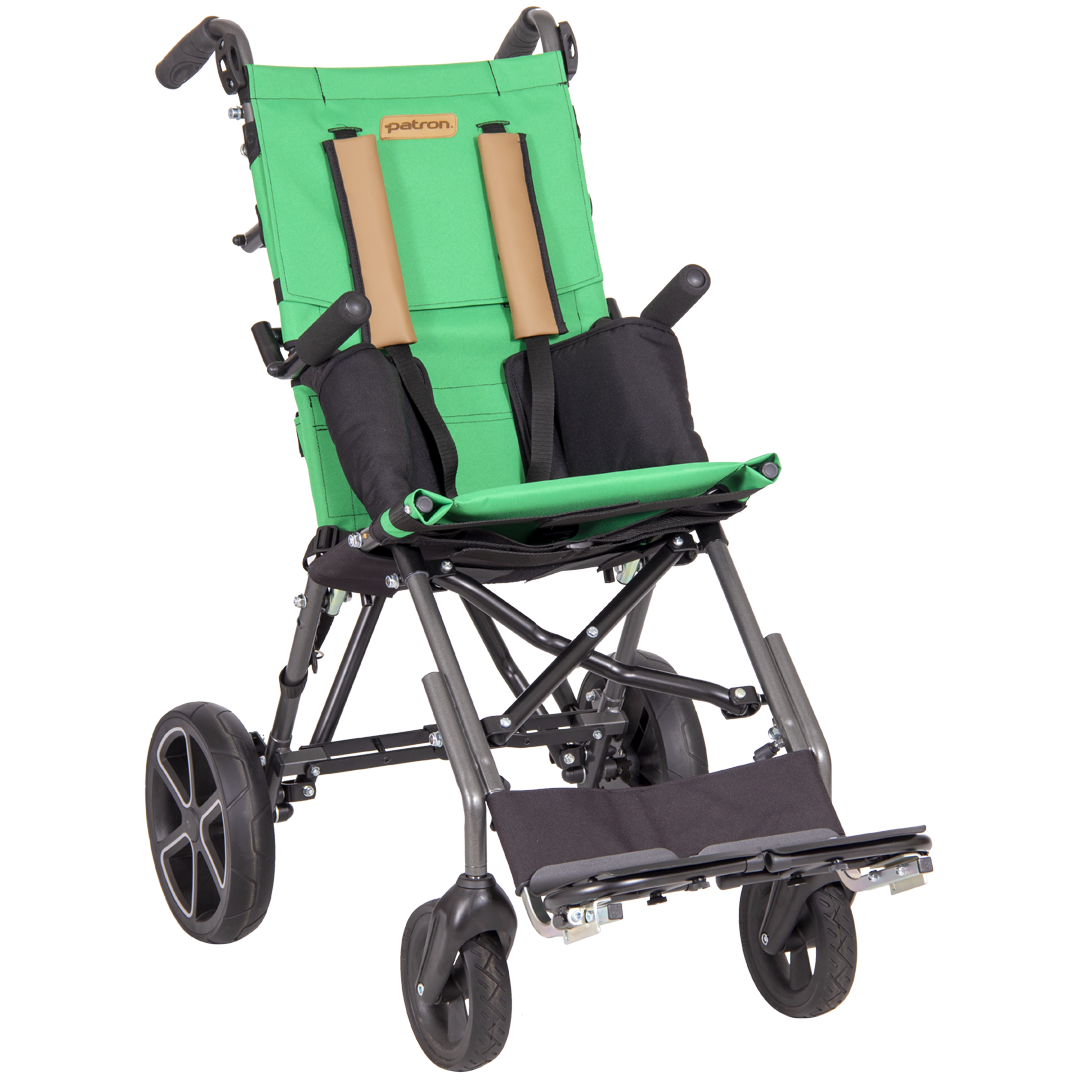

CORZO is an advanced rehab buggy available in 4 sizes.

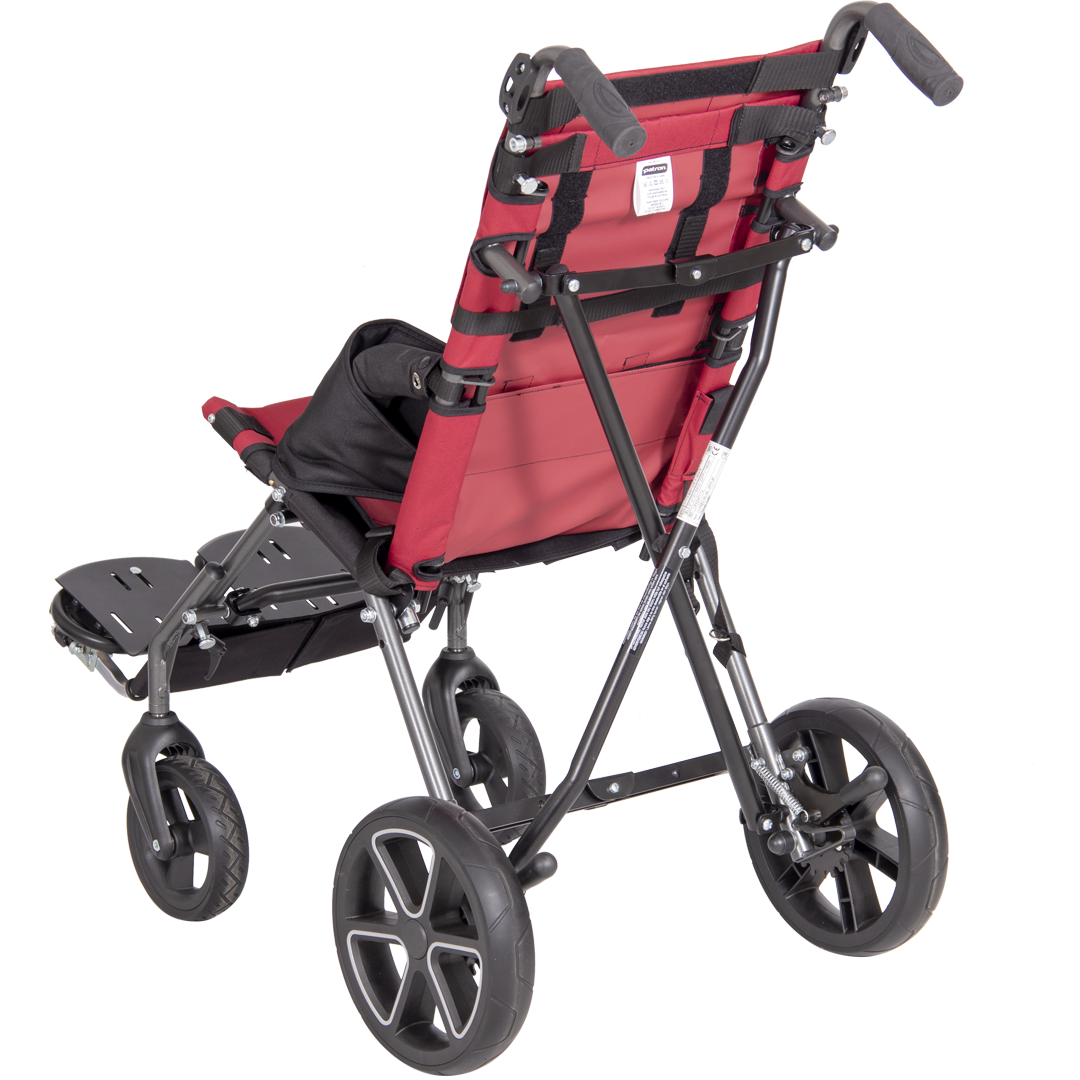

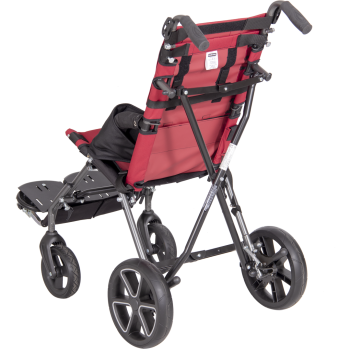

The frame has a range of built-in adjustments such as seat depth and height to keep the buggy growing with the child. Corzo can be fitted with supportive accessories to enable it to be used as a short term transit buggy for users with severe seating needs. Fully foldable undercarriage is produced from lightweight alloy profiles with powder coating finish. Buggy is designed with easy and optimized buggy folding system, wheels of 175/265 mm, light frame, 5-point harness ensuring high safety and comfortable handling. Those features make the products very well suitable for in-town conditions and public transportation, but as well as for light outdoor activities.
Standard equipment:
- seat depth adjustable
- backrest height adjustable

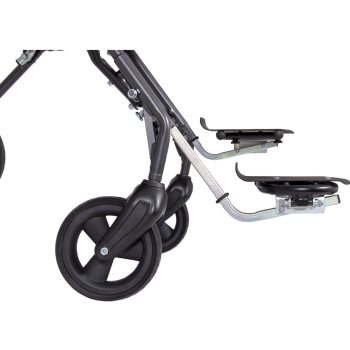

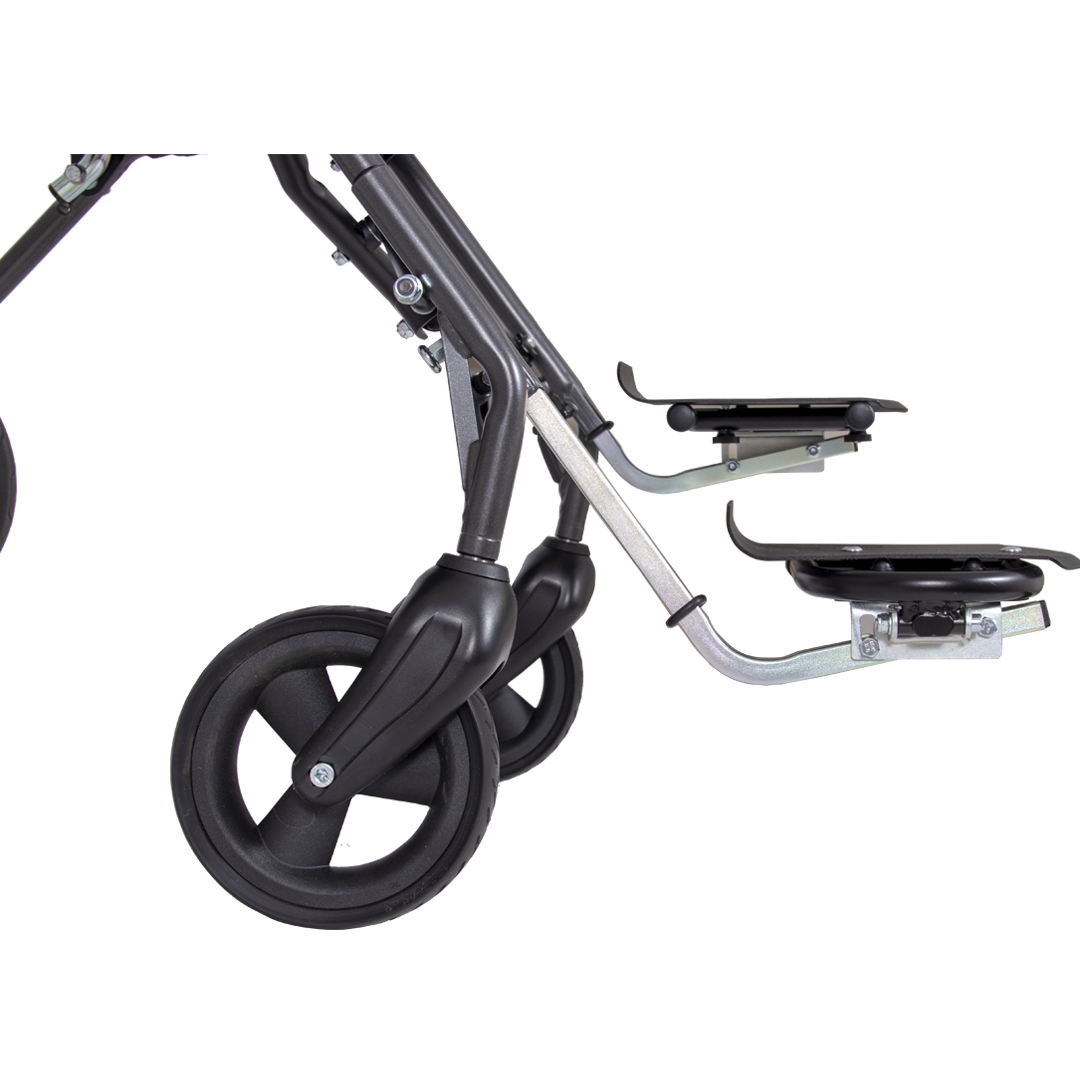

- footrest height adjustable and foldable (angle adj.*)
- backrest angle adjustable (2 positions)
- backrest height extension (size 38, 42 only)
- 5-point immo. harness with crotch belt and shoulder padding
- Comfort side protection
- 175 / 265 mm solid wheels
- cover patterns and frame colors according to current offer
Stroller sizes
34
38
42
30
34
38
42
Patterns of covers
G02
ruby red
G03
dark blue
G06
grass green
G07
black
G02
ruby red
G03
dark blue
G06
grass green
G07
black
| CRX 30 | CRX 34 | CRX 38 | CRX 42 | |
|---|---|---|---|---|
| Seat width (mm) | 300 | 340 | 380 | 420 |
| Seat depth (mm) | 250-310 | 290-370 | 310-380 | 330-390 |
| Backrest height (mm) | 550-650 | 580-680 | 630-730 (880) | 650-750 (900) |
| Seat to footrest (mm) | 270-410 | 290-430 | 300-470 | 310-480 |
| Seat angle | 24°, 23° | 24°, 23° | 22°, 21° | 22°, 21° |
| Backrest angle | 91°, 93° | 91°, 94° | 90°, 93° | 90°, 93° |
| Weight (kg) | 13,0 | 13,1 | 15,0 | 16,0 |
| Maximum load (kg) | 45,0 | 55,0 | 75,0 | 75,0 |
| Total length (mm) | 980 | 980 | 1050 | 1050 |
| Total width (mm) | 527 | 590 | 620 | 650 |
| Total height / with handle (mm) | 980-1080 | 980-1080 | 1190 | 1220 |
| Brake | foot oper. | foot oper. | foot oper. | foot oper. |
| Folded stroller length (mm) | 1160 | 1180 | 1200 | 1200 |
| Folded stroller width (mm) | 330 | 340 | 340 | 400 |
| Folded stroller height (mm) | 320-400 | 340-420 | 340-420 | 340-420 |
Seat width (mm)
CRX 30
300
CRX 34
340
CRX 38
380
CRX 42
420
Seat depth (mm)
CRX 30
250-310
CRX 34
290-370
CRX 38
310-380
CRX 42
330-390
Backrest height (mm)
CRX 30
550-650
CRX 34
580-680
CRX 38
630-730 (880)
CRX 42
650-750 (900)
Seat to footrest (mm)
CRX 30
270-410
CRX 34
290-430
CRX 38
300-470
CRX 42
310-480
Seat angle
CRX 30
24°, 23°
CRX 34
24°, 23°
CRX 38
22°, 21°
CRX 42
22°, 21°
Backrest angle
CRX 30
91°, 93°
CRX 34
91°, 94°
CRX 38
90°, 93°
CRX 42
90°, 93°
Weight (kg)
CRX 30
13,0
CRX 34
13,1
CRX 38
15,0
CRX 42
16,0
Maximum load (kg)
CRX 30
45,0
CRX 34
55,0
CRX 38
75,0
CRX 42
75,0
Total length (mm)
CRX 30
980
CRX 34
980
CRX 38
1050
CRX 42
1050
Total width (mm)
CRX 30
527
CRX 34
590
CRX 38
620
CRX 42
650
Total height / with handle (mm)
CRX 30
980-1080
CRX 34
980-1080
CRX 38
1190
CRX 42
1220
Brake
CRX 30
foot oper.
CRX 34
foot oper.
CRX 38
foot oper.
CRX 42
foot oper.
Folded stroller length (mm)
CRX 30
1160
CRX 34
1180
CRX 38
1200
CRX 42
1200
Folded stroller width (mm)
CRX 30
330
CRX 34
340
CRX 38
340
CRX 42
400
Folded stroller height (mm)
CRX 30
320-400
CRX 34
340-420
CRX 38
340-420
CRX 42
340-420
