MINI

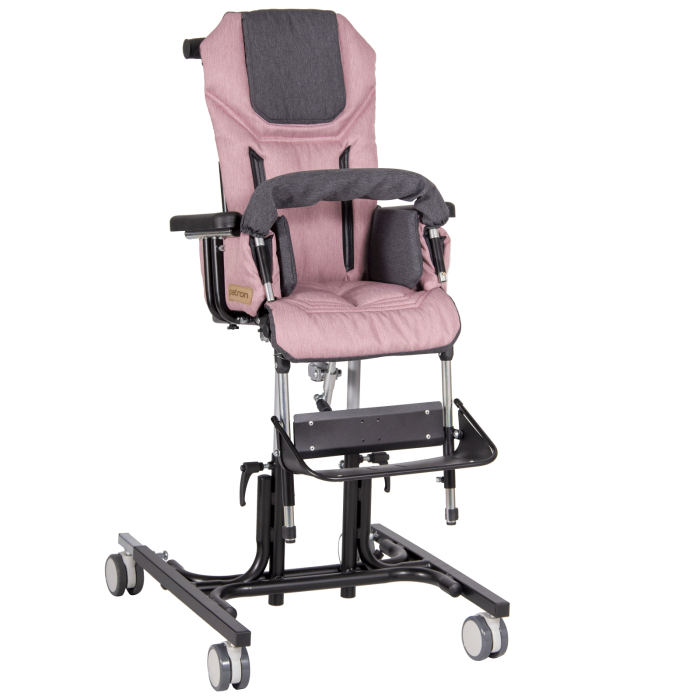

TAMPA Classic
fully adjustable seat unit
height adjustable base
4 sizes (up to 75 kg)
Sizes
STD
MAXI
SM42
MINI
STD
MAXI
SM42
Patterns of covers
R54
slate grey
R55
denim blue
R56
peas green
R57
antique pink
R54
slate grey
R55
denim blue
R56
peas green
R57
antique pink
| MINI | STD | MAXI | SM42 | |
|---|---|---|---|---|
| Backrest height (mm) | 540-600 | 520-680 | 580-680 | 580-690 |
| Seat depth (mm) | 200-270 | 280-310 | 320-430 | 320-430 |
| Seat width (mm) | 200/step/300 | 240/step/340 | 280/step/380 | 320/step/420 |
| Seat to floor (mm) | 530-580 | 530-580 | 530-580 | 530-580 |
| Seat to footplate | 140-290 | 190-340 | 240-390 | 340-390 |
| Backrest angle | 90° - 165° | 90° - 165° | 90° - 160° | 90° - 160° |
| Seat angle | +/-27° | +/-27° | +/-25° | +/-25° |
| Total length (mm) | 600 | 600 | 600 | 600 |
| Total width (mm) | 460 | 460 | 460 | 550 |
| Total height / with handle (mm) | 970 | 970 | 970 | 980 |
| Brake | foot oper. | foot oper. | foot oper. | foot oper. |
| Total width (mm) | 15,0 | 15,0 | 17,0 | 18,0 |
| Maximum load (kg) | 40,0 | 40,0 | 50,0 | 75,0 |
Backrest height (mm)
MINI
540-600
STD
520-680
MAXI
580-680
SM42
580-690
Seat depth (mm)
MINI
200-270
STD
280-310
MAXI
320-430
SM42
320-430
Seat width (mm)
MINI
200/step/300
STD
240/step/340
MAXI
280/step/380
SM42
320/step/420
Seat to floor (mm)
MINI
530-580
STD
530-580
MAXI
530-580
SM42
530-580
Seat to footplate
MINI
140-290
STD
190-340
MAXI
240-390
SM42
340-390
Backrest angle
MINI
90° - 165°
STD
90° - 165°
MAXI
90° - 160°
SM42
90° - 160°
Seat angle
MINI
+/-27°
STD
+/-27°
MAXI
+/-25°
SM42
+/-25°
Total length (mm)
MINI
600
STD
600
MAXI
600
SM42
600
Total width (mm)
MINI
460
STD
460
MAXI
460
SM42
550
Total height / with handle (mm)
MINI
970
STD
970
MAXI
970
SM42
980
Brake
MINI
foot oper.
STD
foot oper.
MAXI
foot oper.
SM42
foot oper.
Total width (mm)
MINI
15,0
STD
15,0
MAXI
17,0
SM42
18,0
Maximum load (kg)
MINI
40,0
STD
40,0
MAXI
50,0
SM42
75,0
