TOM 5 Streeter

Obrázek
100% ALUX high-tech chassis
unique MONOSLIDE design
excelent colour range
wide accessory range
Newly redesigned high-tech full-aluminum  stroller chassis is produced by the high-tech ALUX production method, which takes advantage of an aluminum alloy and a titan joint hardener combination. ALUX method ensures chassis low weight and high durability.

Fully foldable chassis includes among others  well designed chassis to seat interface, safe brake-system, spring cushioned shock absorber, ergonomically shaped handlebar with the height adjustment.

100% ALUX full-aluminum seat is as well as produced fully by high-tech ALUX production method. Seat-unit is detachable, reversible and fully size and position adjustable. It includes not only highly innovative MONOSLIDE design, but as well as easy tilt-in-space telescope operated system and well approved flexible system for attaching of fixation devices and positioning accessories.  Seat shell is covered by fully detachable soft padded textile upholstery in fashionable design. Easy handling is ensured as well as by the stroller’s fully foldable frame even with attached seat.

TOM 5 has been designed in cooperation with professional designers and seating specialists and it excels not only in design but as well as in use value – it is one of the lightest strollers in the category. Additionally 175/265 mm solid wheels enables usage of the product not only in town but as well as for the light outdoor activities.
Standard equipment:

  • detachable and reversible seat-unit
  • height adjustable backrest
  • depth and width adjustment of the seat-base.
  • seat-unit with fully adjustable tilt-in-space function
  • fully reclining backrest with lateral supports
  • angle and height adjustable footrest
  • angle adjustable footplate

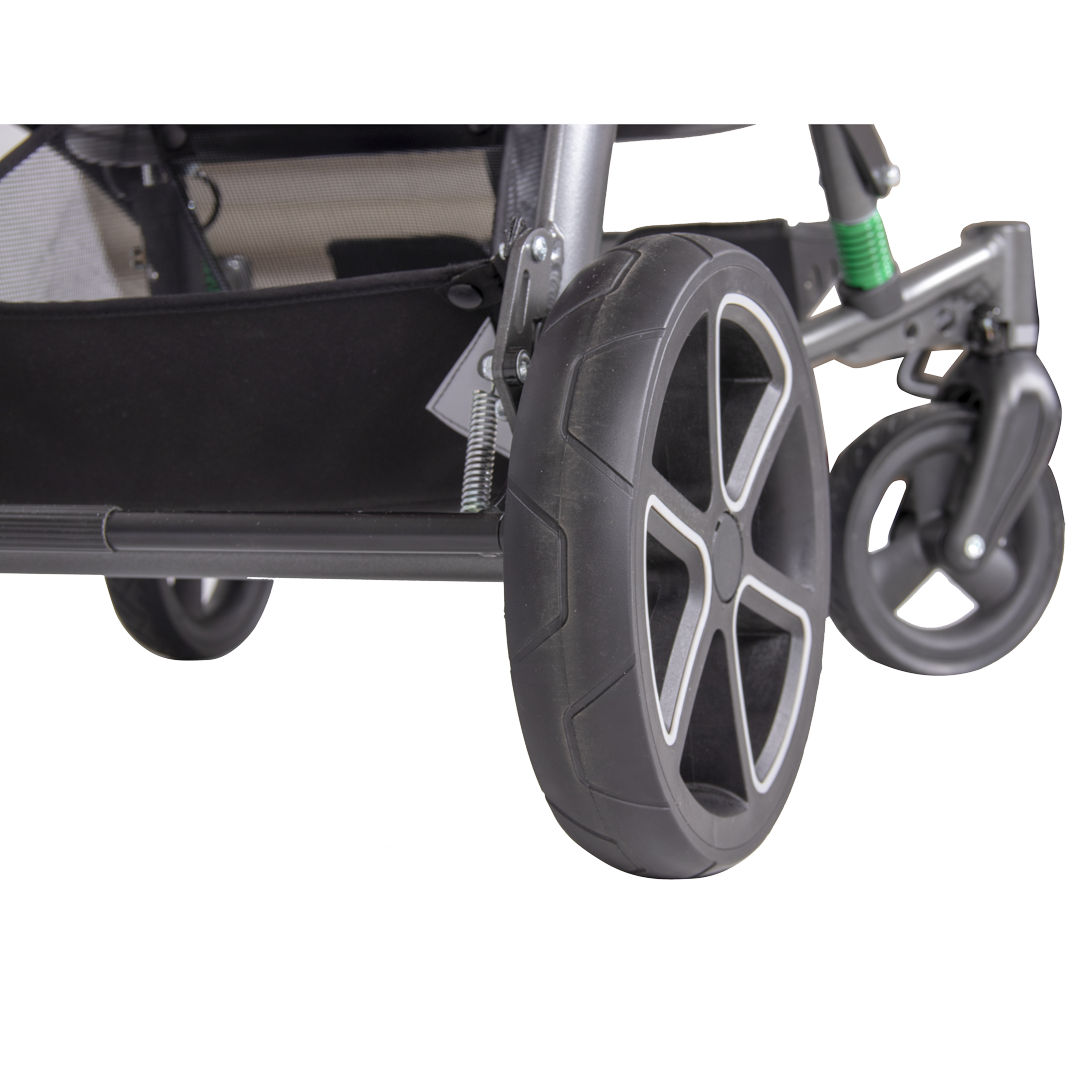

  • 175/265 mm solid wheels
  • detachable grab bar with cover
  • height adjustable ergonomic handlebar
  • upholstery with reflexive safety marks
  • basket, hip rest, padded frame cover
  • frame colors and fabric patterns according to the current offer
Stroller sizes
MINI
STANDARD
MAXI
Patterns of covers
R54
R55
R56
R57
R58
R59
  MINI STD MAXI
Backrest height (mm) 450-570 510-680 550-770
Seat depth (mm) 200-270 230-330 290-400
Seat width (mm) 230-300 250-340 270-380
Seat to footrest (mm) 120-280 120-360 120-390
Backrest angle 90° - 165° 90° - 180° 90° - 180°
Seat angle +46/-30° +38/-32° +43/-33°
Total lenght (mm) 760 760 760
Total width 595 630 670
Total height (mm) 1000 1000 1070
Brake foot oper. foot oper. foot oper.
Weight (kg) 18,4 20,0 21,0
Maximum load (kg) 40,0 40,0 50,0
Folded stroller lenght (mm) 840 850 880
Folded stroller width (mm) 595 630 670
Folded stroller height (mm) 360 370 390
Backrest height (mm)
MINI
450-570
STD
510-680
MAXI
550-770
Seat depth (mm)
MINI
200-270
STD
230-330
MAXI
290-400
Seat width (mm)
MINI
230-300
STD
250-340
MAXI
270-380
Seat to footrest (mm)
MINI
120-280
STD
120-360
MAXI
120-390
Backrest angle
MINI
90° - 165°
STD
90° - 180°
MAXI
90° - 180°
Seat angle
MINI
+46/-30°
STD
+38/-32°
MAXI
+43/-33°
Total lenght (mm)
MINI
760
STD
760
MAXI
760
Total width
MINI
595
STD
630
MAXI
670
Total height (mm)
MINI
1000
STD
1000
MAXI
1070
Brake
MINI
foot oper.
STD
foot oper.
MAXI
foot oper.
Weight (kg)
MINI
18,4
STD
20,0
MAXI
21,0
Maximum load (kg)
MINI
40,0
STD
40,0
MAXI
50,0
Folded stroller lenght (mm)
MINI
840
STD
850
MAXI
880
Folded stroller width (mm)
MINI
595
STD
630
MAXI
670
Folded stroller height (mm)
MINI
360
STD
370
MAXI
390
