30
Basic

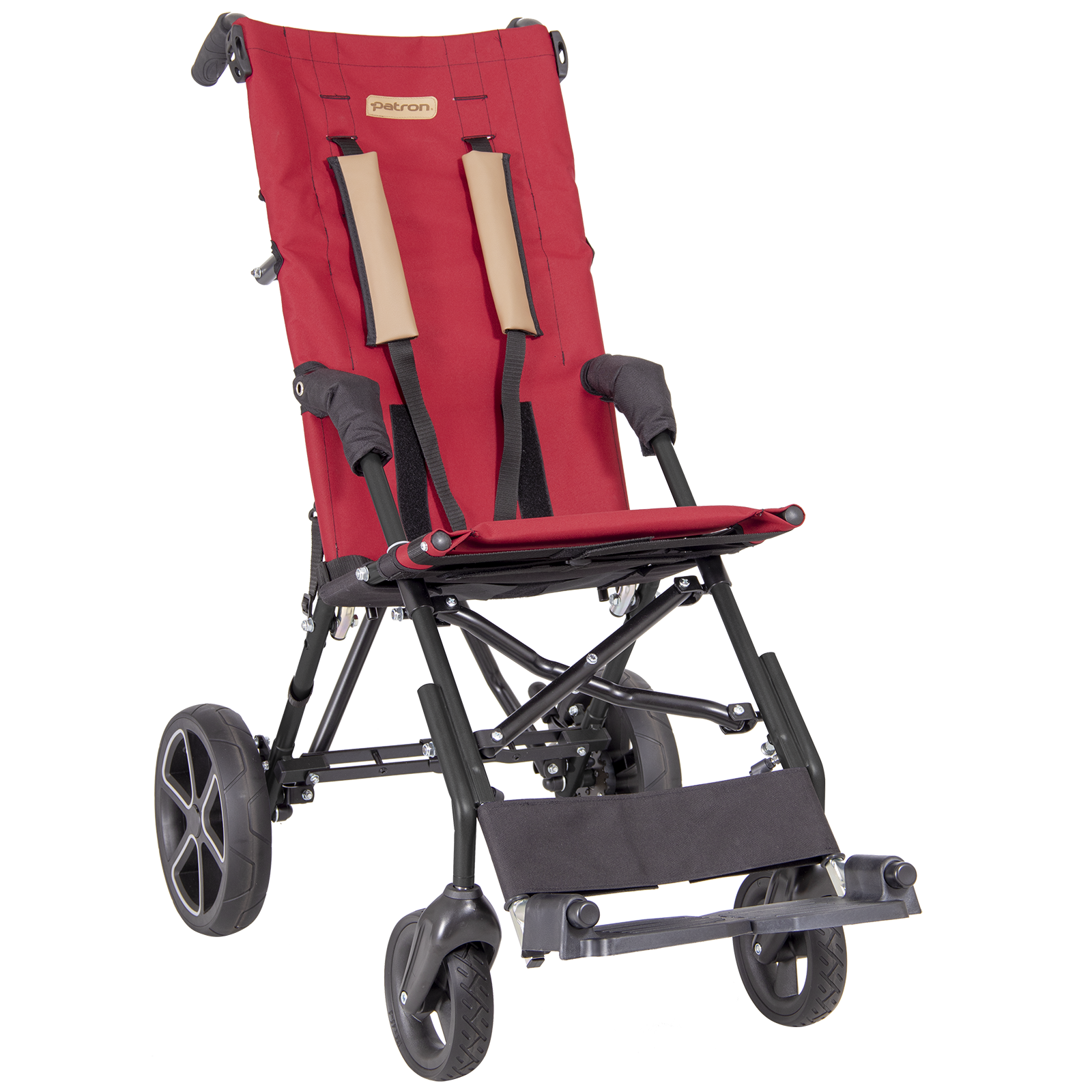

CORZINO BASIC
entry Budget buggy
two-piece plastic Footrest

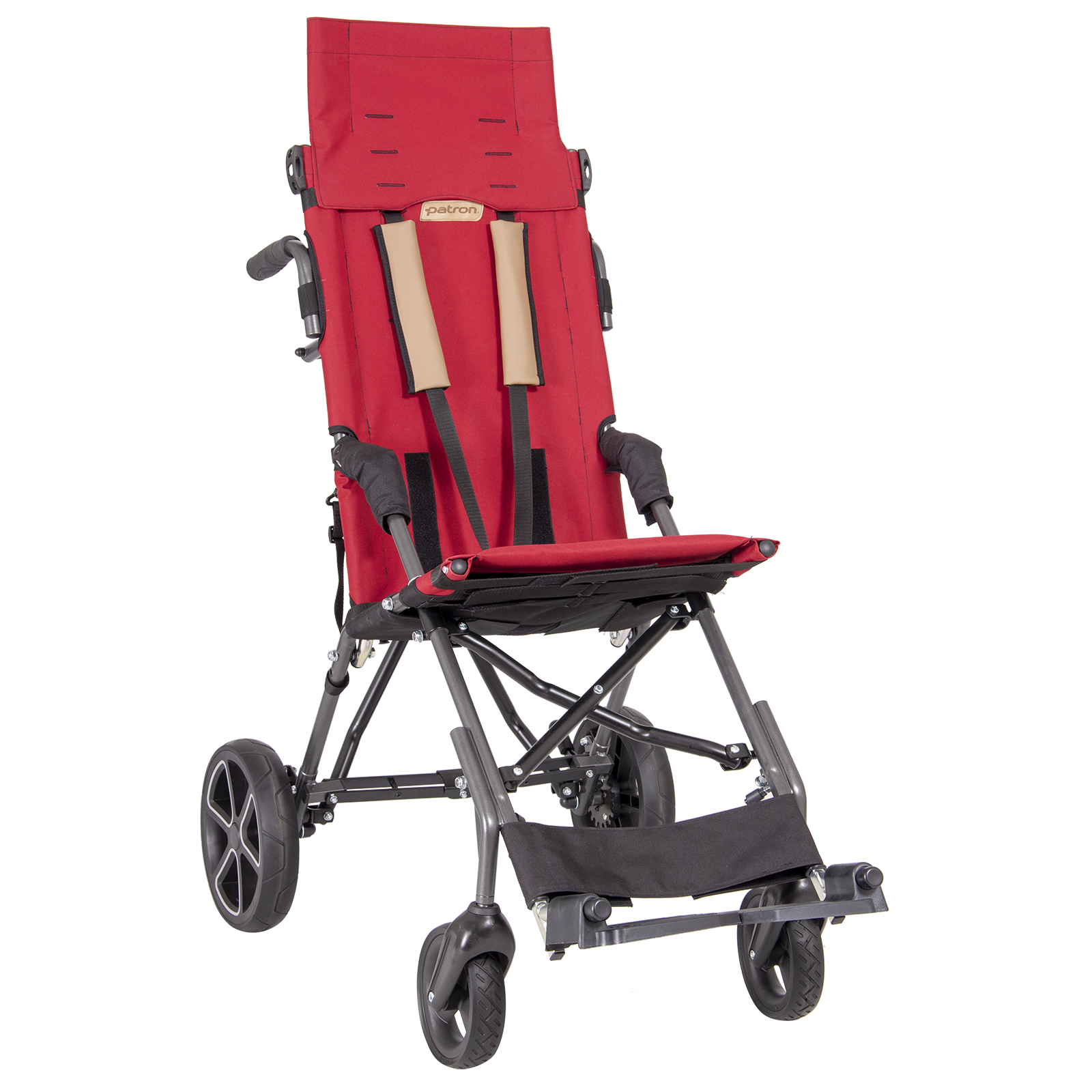

backrest Extension (on 38 and 42)
high Load Capacity (up to 75 kg)
Sizes
34
38
42
30
34
38
42
Patterns of covers
G02
ruby red
G03

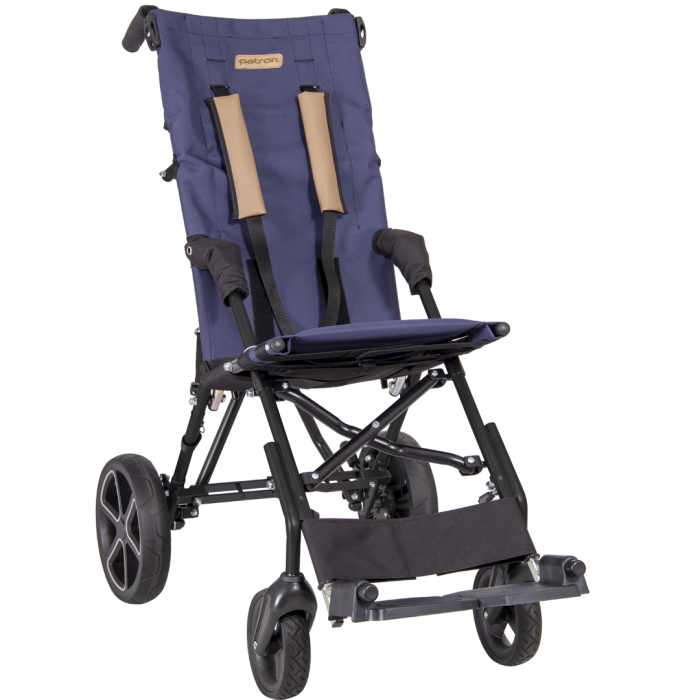

dark blue
G06

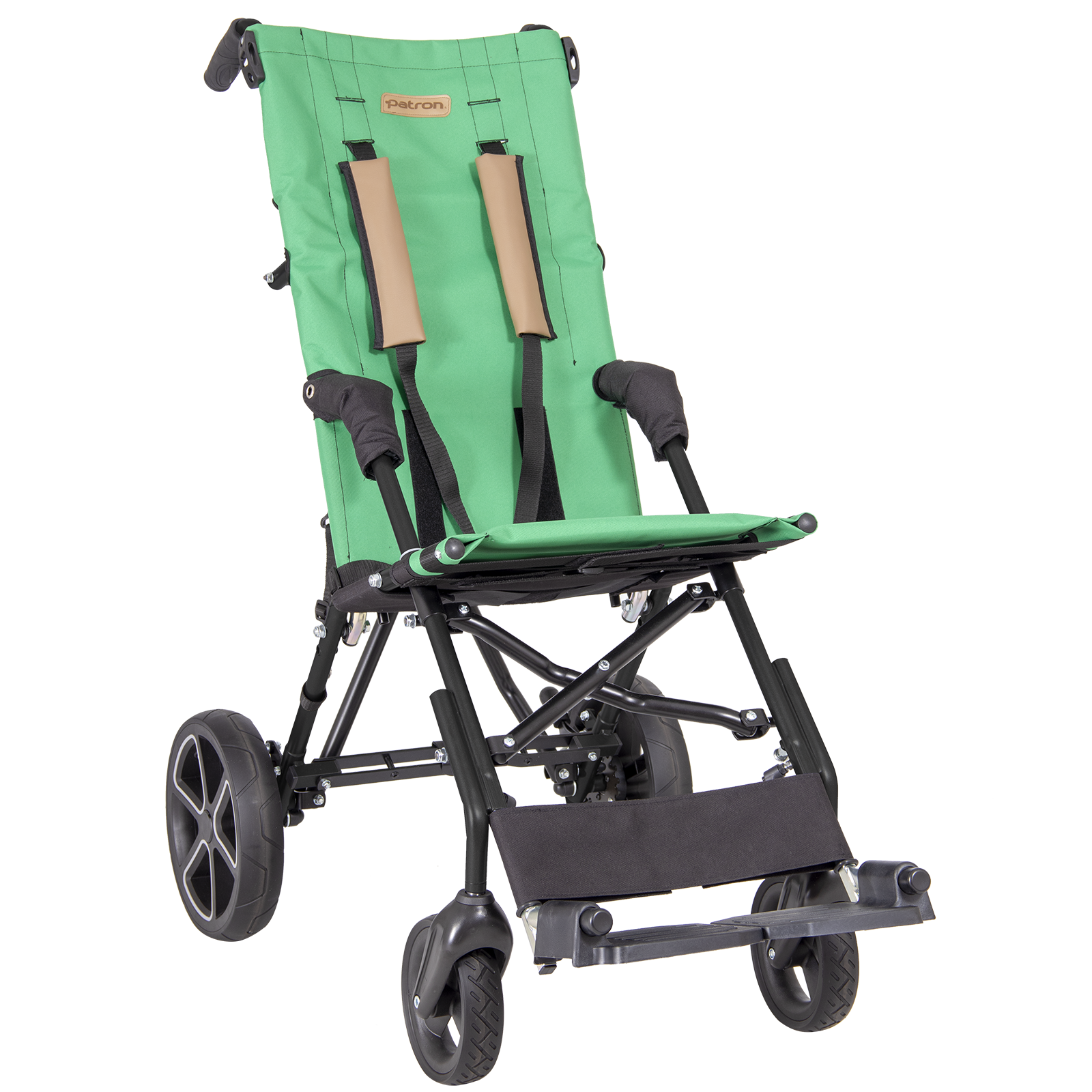

grass green
G07
black
G02
ruby red
G03
dark blue
G06
grass green
G07
black
Standard equipment
- footrest height adjustable and foldable
- backrest angle adjustable (2 positions)
- 5-point immmo. harness with crotch belt and shoulder padding
- backrest height extension (size 38, 42 only)
- 175/265 mm big solid wheels
- cover patterns and frame colors according to current offer
| CNB30 | CNB34 | CNB38 | CNB42 | |
|---|---|---|---|---|
| Backrest height (mm) | 550 | 650 | 650 (820) | 660 (830) |
| Seat depth (mm) | 280 | 330 | 380 | 380 |
| Seat width (mm) | 300 | 340 | 380 | 420 |
| Seat to footrest (mm) | 290-420 | 300-440 | 300-440 | 330-490 |
| Backrest angle | 91°, 93° | 91°, 94° | 90°, 93° | 90°, 93° |
| Seat angle | 22°, 21° | 23°, 22° | 22°, 21° | 23°, 22° |
| Total lenght (mm) | 980 | 980 | 1050 | 1050 |
| Total width (mm) | 530 | 590 | 620 | 650 |
| Total height (mm) | 970 | 1040 | 1230 | 1270 |
| Brake | foot oper. | foot oper. | foot oper. | foot oper. |
| Weight (kg) | 12,5 | 12,6 | 14,5 | 15,5 |
| Maximum load (kg) | 45,0 | 55,0 | 75,0 | 75,0 |
| Folded stroller lenght (mm) | 1160 | 1180 | 1200 | 1200 |
| Folded stroller width (mm) | 340 | 340 | 370 | 400 |
| Folded stroller height (mm) | 350 | 370 | 360 | 360 |
Backrest height (mm)
CNB30
550
CNB34
650
CNB38
650 (820)
CNB42
660 (830)
Seat depth (mm)
CNB30
280
CNB34
330
CNB38
380
CNB42
380
Seat width (mm)
CNB30
300
CNB34
340
CNB38
380
CNB42
420
Seat to footrest (mm)
CNB30
290-420
CNB34
300-440
CNB38
300-440
CNB42
330-490
Backrest angle
CNB30
91°, 93°
CNB34
91°, 94°
CNB38
90°, 93°
CNB42
90°, 93°
Seat angle
CNB30
22°, 21°
CNB34
23°, 22°
CNB38
22°, 21°
CNB42
23°, 22°
Total lenght (mm)
CNB30
980
CNB34
980
CNB38
1050
CNB42
1050
Total width (mm)
CNB30
530
CNB34
590
CNB38
620
CNB42
650
Total height (mm)
CNB30
970
CNB34
1040
CNB38
1230
CNB42
1270
Brake
CNB30
foot oper.
CNB34
foot oper.
CNB38
foot oper.
CNB42
foot oper.
Weight (kg)
CNB30
12,5
CNB34
12,6
CNB38
14,5
CNB42
15,5
Maximum load (kg)
CNB30
45,0
CNB34
55,0
CNB38
75,0
CNB42
75,0
Folded stroller lenght (mm)
CNB30
1160
CNB34
1180
CNB38
1200
CNB42
1200
Folded stroller width (mm)
CNB30
340
CNB34
340
CNB38
370
CNB42
400
Folded stroller height (mm)
CNB30
350
CNB34
370
CNB38
360
CNB42
360
