30
Classic
CORZINO Classic
great ratio of usage value and price
two-piece 3-D Flexi Footrest
backrest Extension (on 38 and 42)
comfort Side Protection
Sizes
34
38
42

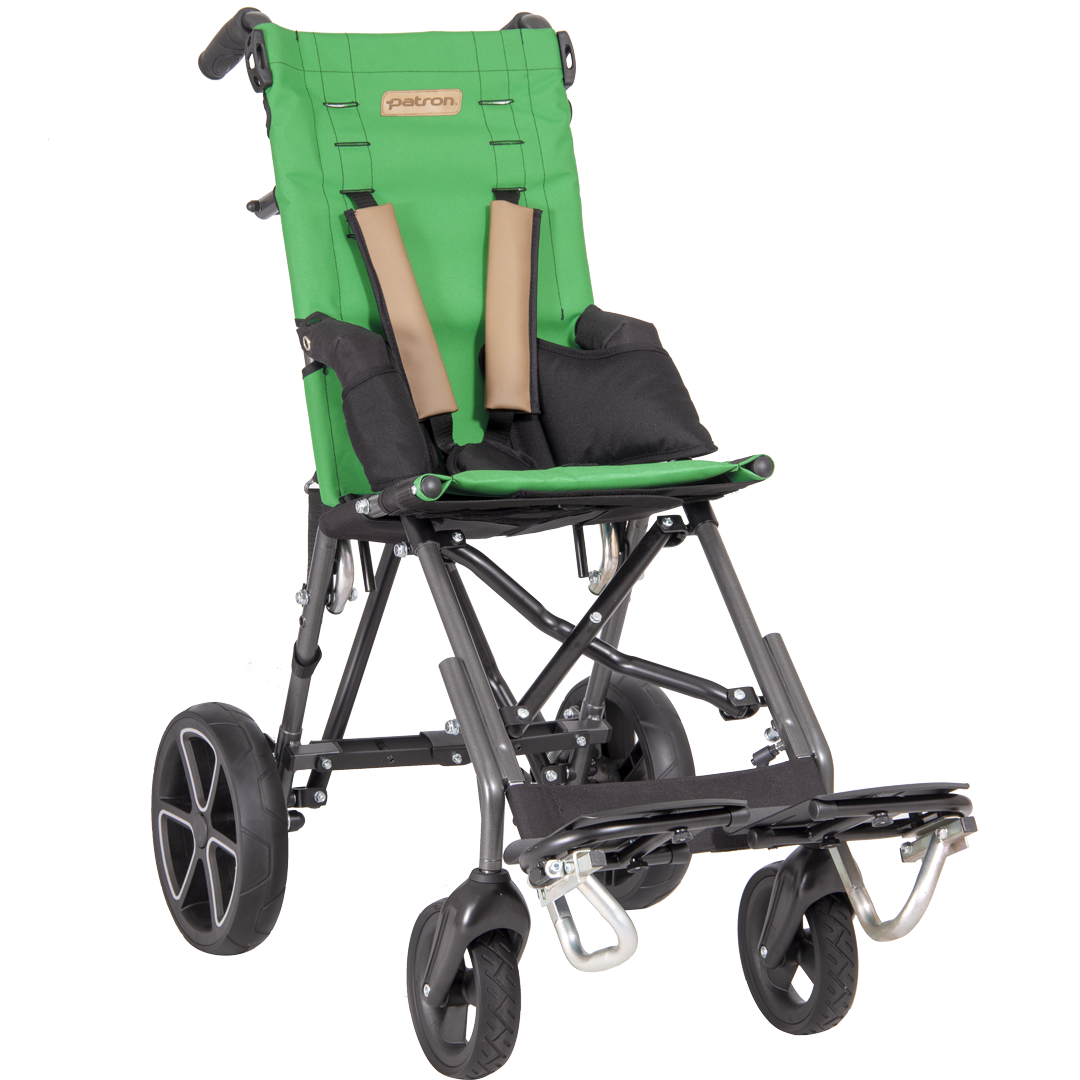

30

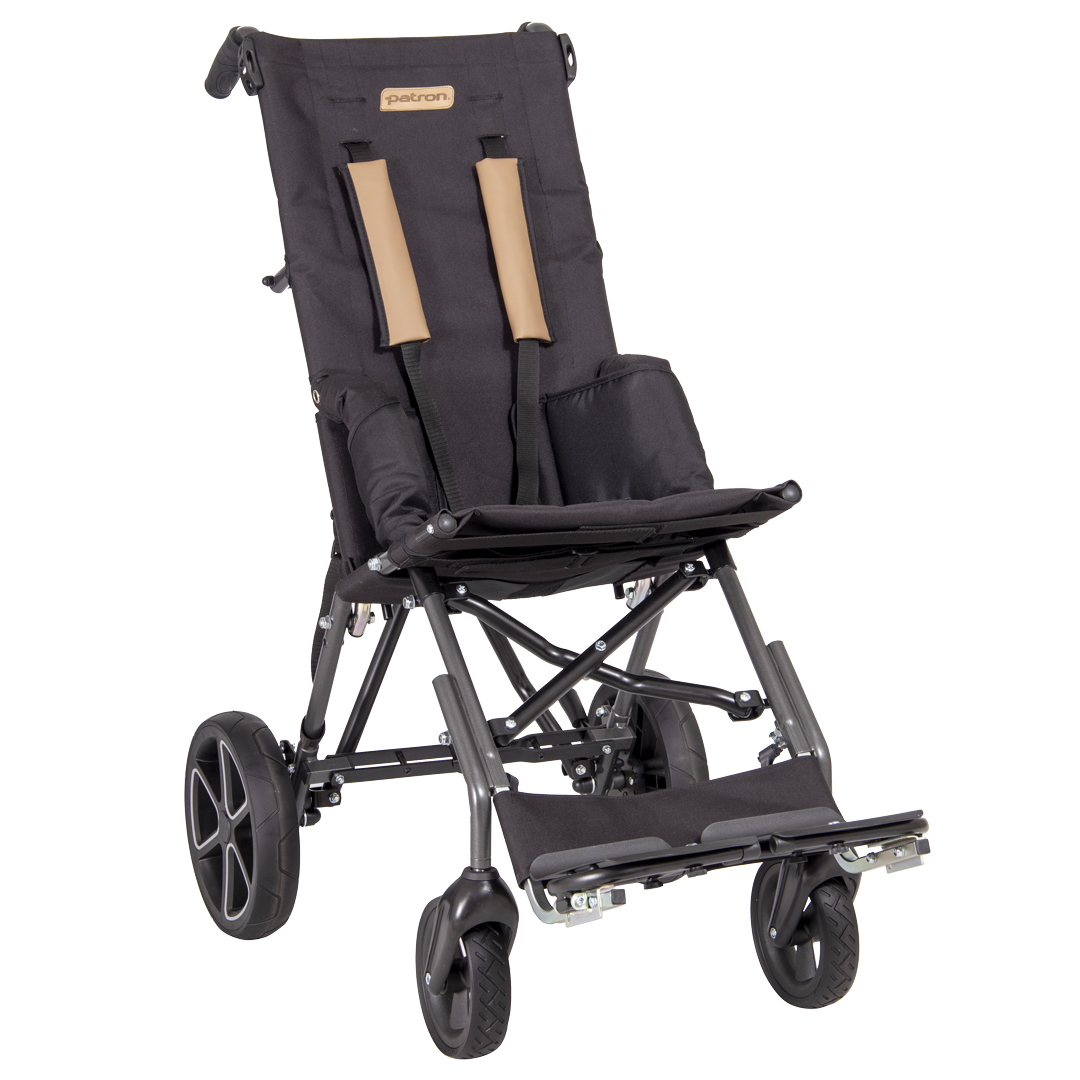

34

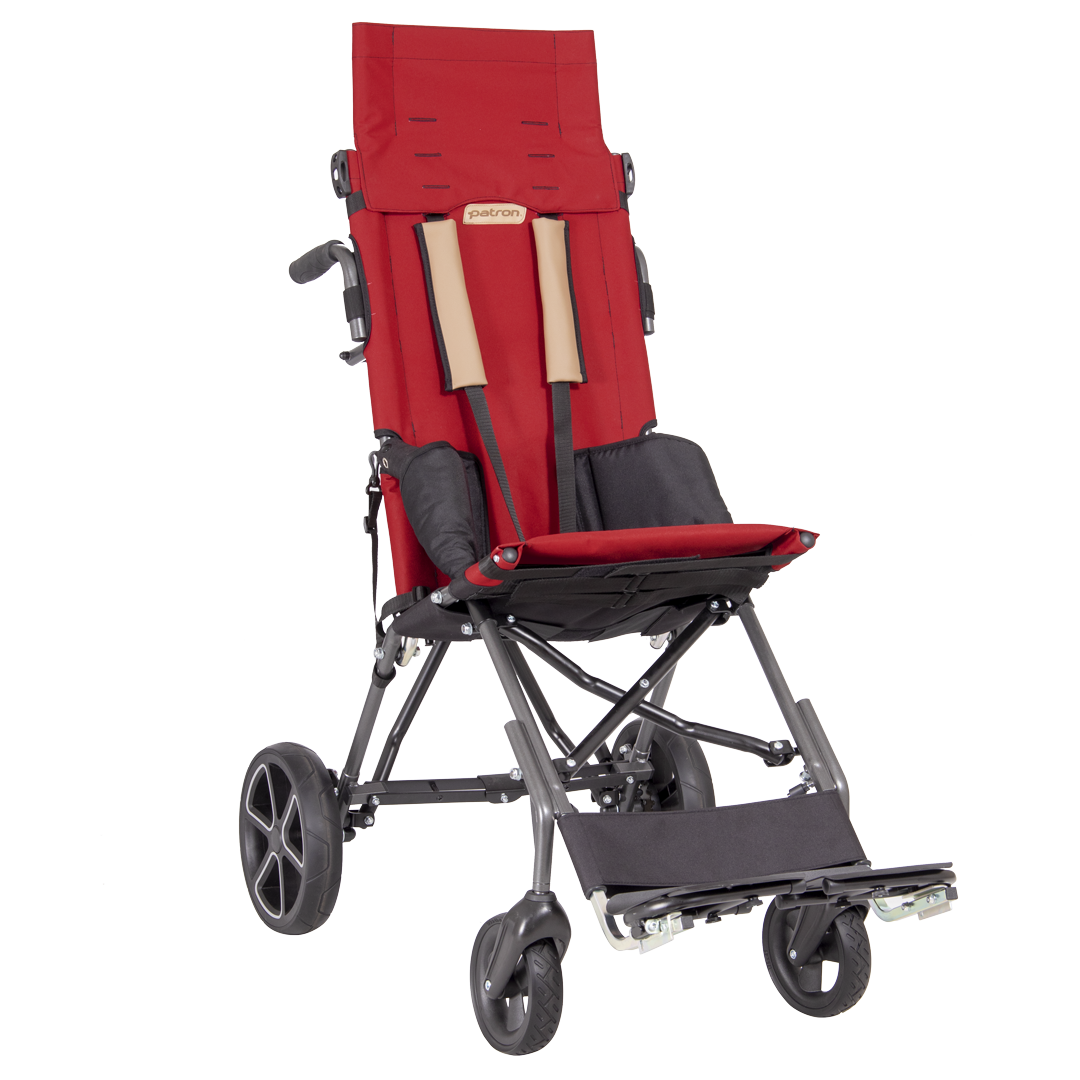

38

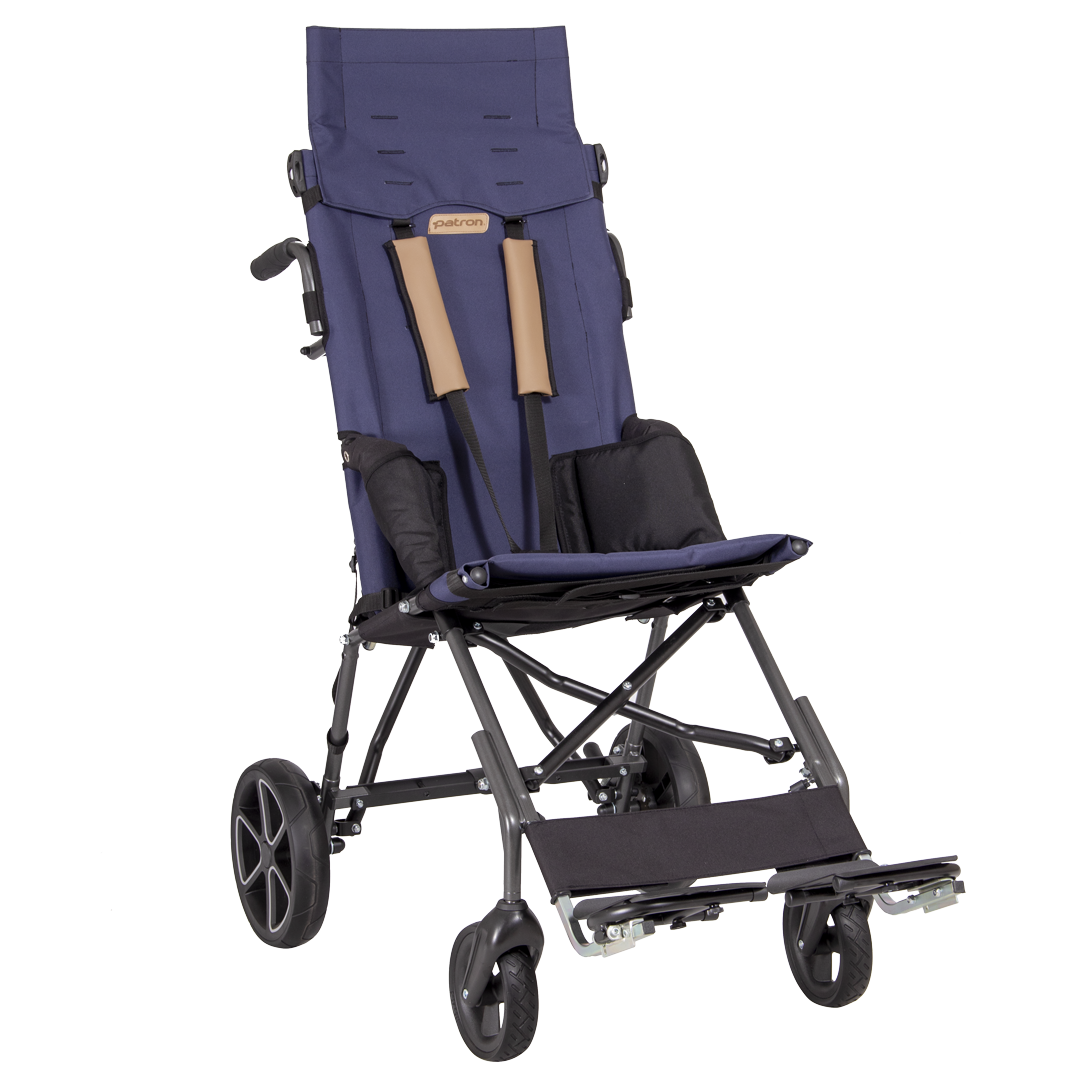

42
Patterns of covers
G02
ruby red
G03
dark blue
G06
grass green
G07
black
G02
ruby red
G03
dark blue
G06
grass green
G07
black
Standard equipment
- footrest height adjustable and foldable (angle adj.*)
- backrest angle adjustable (2 positions)
- 5-point immo. harness with crotch belt and shoulder padding
- backrest height extension (size 38, 42 only)
- 175/265 mm solid wheels
- cover patterns and frame colors according to current offer
| CNC30 | CNC34 | CNC38 | CNC42 | |
|---|---|---|---|---|
| Backrest height (mm) | 550 | 650 | 650 (820) | 660 (830) |
| Seat depth (mm) | 280 | 330 | 380 | 380 |
| Seat width (mm) | 300 | 340 | 380 | 420 |
| Seat to footrest (mm) | 270-410 | 290-430 | 300-470 | 320-480 |
| Backrest angle | 91°, 93° | 91°, 94° | 90°, 93° | 90°, 93° |
| Seat angle | 22°, 21° | 23°, 22° | 22°, 21° | 23°, 22° |
| Total lenght (mm) | 980 | 980 | 1050 | 1050 |
| Total width (mm) | 530 | 590 | 620 | 650 |
| Total height (mm) | 970 | 1040 | 1230 | 1270 |
| Brake | foot oper. | foot oper. | foot oper. | foot oper. |
| Weight (kg) | 12,5 | 12,6 | 14,5 | 15,5 |
| Maximum load (kg) | 45,0 | 55,0 | 75,0 | 75,0 |
| Folded stroller lenght (mm) | 1160 | 1180 | 1200 | 1200 |
| Folded stroller width (mm) | 340 | 340 | 370 | 400 |
| Folded stroller height (mm) | 350 | 370 | 360 | 360 |
Backrest height (mm)
CNC30
550
CNC34
650
CNC38
650 (820)
CNC42
660 (830)
Seat depth (mm)
CNC30
280
CNC34
330
CNC38
380
CNC42
380
Seat width (mm)
CNC30
300
CNC34
340
CNC38
380
CNC42
420
Seat to footrest (mm)
CNC30
270-410
CNC34
290-430
CNC38
300-470
CNC42
320-480
Backrest angle
CNC30
91°, 93°
CNC34
91°, 94°
CNC38
90°, 93°
CNC42
90°, 93°
Seat angle
CNC30
22°, 21°
CNC34
23°, 22°
CNC38
22°, 21°
CNC42
23°, 22°
Total lenght (mm)
CNC30
980
CNC34
980
CNC38
1050
CNC42
1050
Total width (mm)
CNC30
530
CNC34
590
CNC38
620
CNC42
650
Total height (mm)
CNC30
970
CNC34
1040
CNC38
1230
CNC42
1270
Brake
CNC30
foot oper.
CNC34
foot oper.
CNC38
foot oper.
CNC42
foot oper.
Weight (kg)
CNC30
12,5
CNC34
12,6
CNC38
14,5
CNC42
15,5
Maximum load (kg)
CNC30
45,0
CNC34
55,0
CNC38
75,0
CNC42
75,0
Folded stroller lenght (mm)
CNC30
1160
CNC34
1180
CNC38
1200
CNC42
1200
Folded stroller width (mm)
CNC30
340
CNC34
340
CNC38
370
CNC42
400
Folded stroller height (mm)
CNC30
350
CNC34
370
CNC38
360
CNC42
360
