30

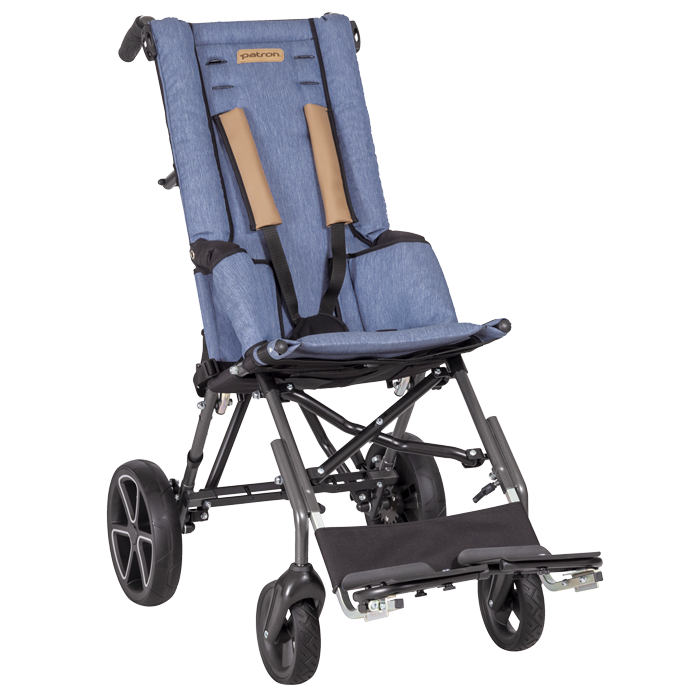

CORZINO Xcountry
premium padded comfortable upholstery
reinforced back upholstery
two-piece 3-D Flexi Footrest

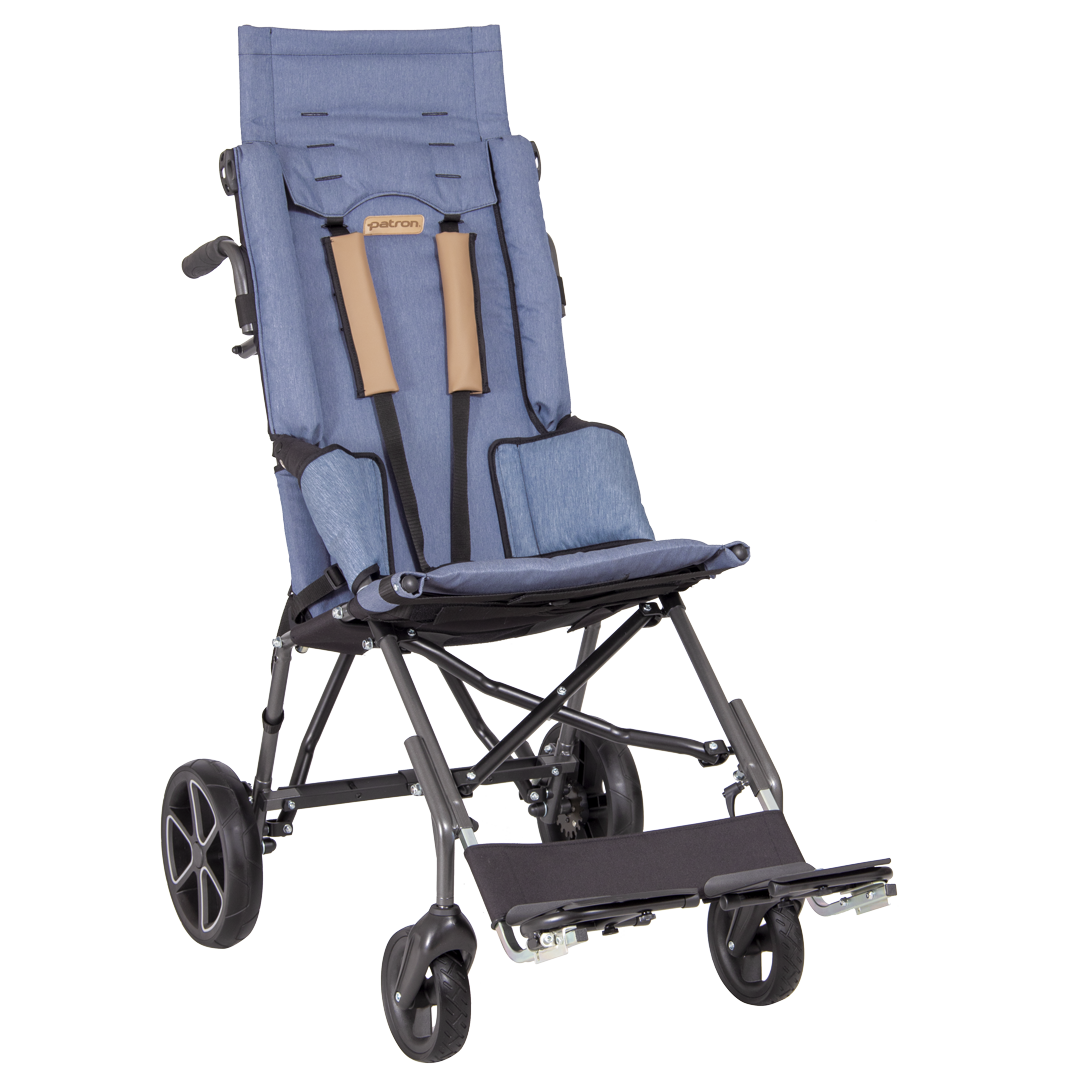

backrest Extension (on 38 and 42)
comfort Side Protection
Sizes
34
38
42
30
34
38
42
Patterns of covers
G16
Slate grey
G17
Denim blue
G18
Pea green
G19
Ruby red
G16
Slate grey
G17
Denim blue
G18
Pea green
G19
Ruby red
Standard equipment
- well padded ergonomical seat cover with reinforced back
- comfort side protection
- footrest height adjustable and foldable (angle adj.*)
- backrest angle adjustable (2 positions)
- 5-point immo. harness with crotch belt and shoulder padding
- backrest height extension (size 38, 42 only)
- 175/265 mm solid wheels
- cover patterns and frame colors according to current offer
- backrest angle adjustable (2 positions)
- 5-point immo. harness with crotch belt and shoulder padding
- backrest height extension (size 38, 42 only)
- 175/265 mm solid wheels
- cover patterns and frame colors according to current offer
| CNX30 | CNX34 | CNX38 | CNX42 | |
|---|---|---|---|---|
| Seat width (mm) | 300 | 340 | 380 | 420 |
| Seat depth (mm) | 280 | 330 | 380 | 380 |
| Backrest height (mm) | 550 | 650 | 650 (820) | 660 (830) |
| Seat to footrest (mm) | 270-410 | 290-430 | 300-470 | 320-480 |
| Seat angle | 22°, 21° | 23°, 22° | 22°, 21° | 23°, 22° |
| Backrest angle | 91°, 93° | 91°, 94° | 90°, 93° | 90°, 93° |
| Weight (kg) | 13,0 | 13,1 | 15,0 | 16,0 |
| Maximum load (kg) | 45,0 | 55,0 | 75,0 | 75,0 |
| Total length (mm) | 980 | 980 | 1050 | 1050 |
| Total width (mm) | 530 | 590 | 620 | 650 |
| Total lenght (mm) | 970 | 1040 | 1230 | 1270 |
| Brake | foot oper. | foot oper. | foot oper. | foot oper. |
| Folded stroller height (mm) | 1160 | 1180 | 1200 | 1200 |
| Folded stroller width (mm) | 340 | 340 | 370 | 400 |
| Folded stroller height (mm) | 350 | 370 | 360 | 360 |
Seat width (mm)
CNX30
300
CNX34
340
CNX38
380
CNX42
420
Seat depth (mm)
CNX30
280
CNX34
330
CNX38
380
CNX42
380
Backrest height (mm)
CNX30
550
CNX34
650
CNX38
650 (820)
CNX42
660 (830)
Seat to footrest (mm)
CNX30
270-410
CNX34
290-430
CNX38
300-470
CNX42
320-480
Seat angle
CNX30
22°, 21°
CNX34
23°, 22°
CNX38
22°, 21°
CNX42
23°, 22°
Backrest angle
CNX30
91°, 93°
CNX34
91°, 94°
CNX38
90°, 93°
CNX42
90°, 93°
Weight (kg)
CNX30
13,0
CNX34
13,1
CNX38
15,0
CNX42
16,0
Maximum load (kg)
CNX30
45,0
CNX34
55,0
CNX38
75,0
CNX42
75,0
Total length (mm)
CNX30
980
CNX34
980
CNX38
1050
CNX42
1050
Total width (mm)
CNX30
530
CNX34
590
CNX38
620
CNX42
650
Total lenght (mm)
CNX30
970
CNX34
1040
CNX38
1230
CNX42
1270
Brake
CNX30
foot oper.
CNX34
foot oper.
CNX38
foot oper.
CNX42
foot oper.
Folded stroller height (mm)
CNX30
1160
CNX34
1180
CNX38
1200
CNX42
1200
Folded stroller width (mm)
CNX30
340
CNX34
340
CNX38
370
CNX42
400
Folded stroller height (mm)
CNX30
350
CNX34
370
CNX38
360
CNX42
360
